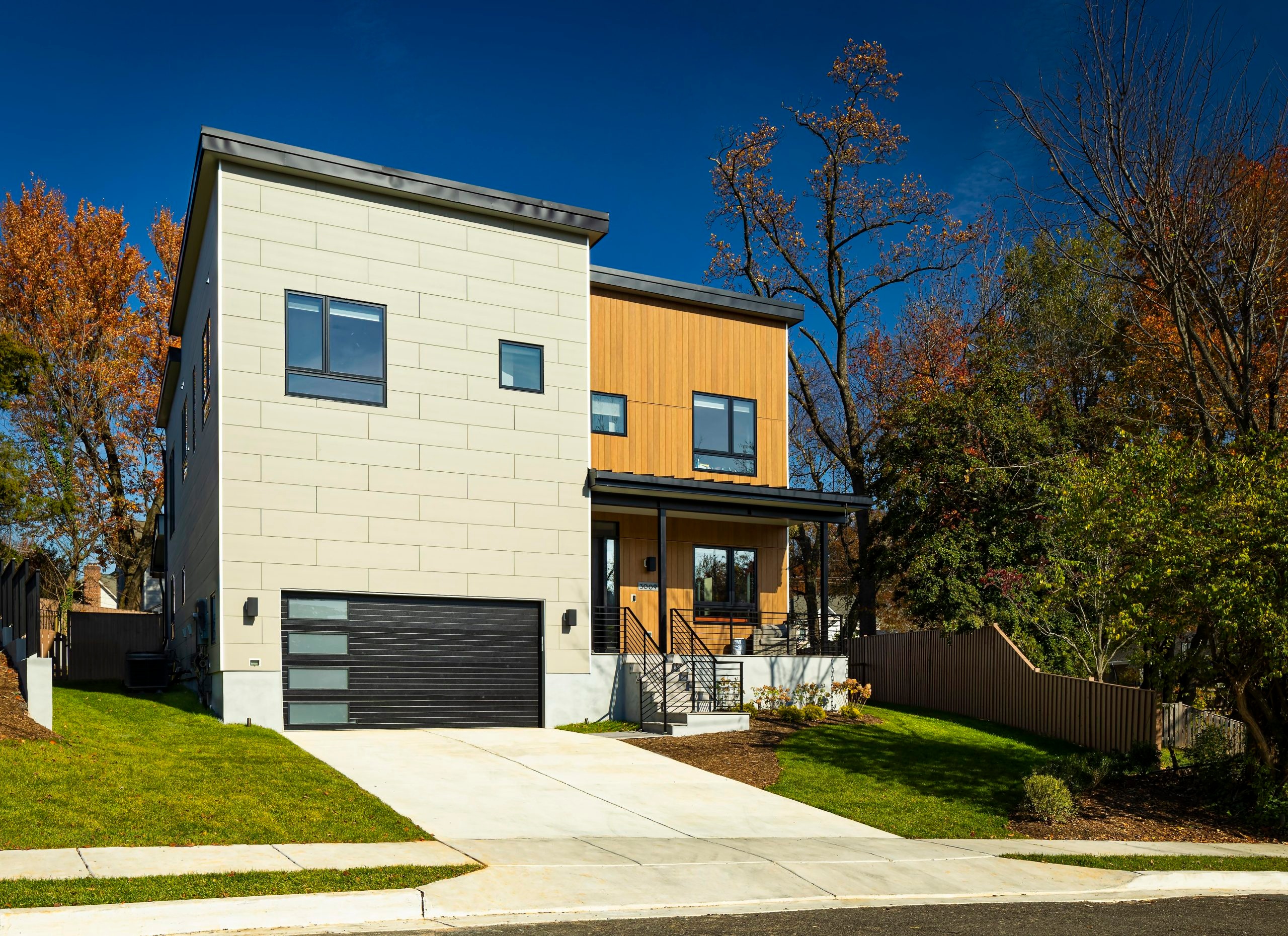

ArchitecturalBlock ArchitecturalBlock project application

ArchitecturalBlock

Modern Series

Choose a product audience

Available Colors:

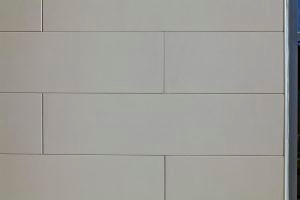

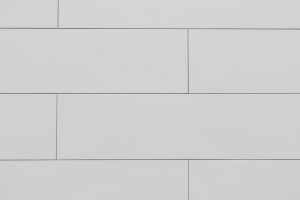

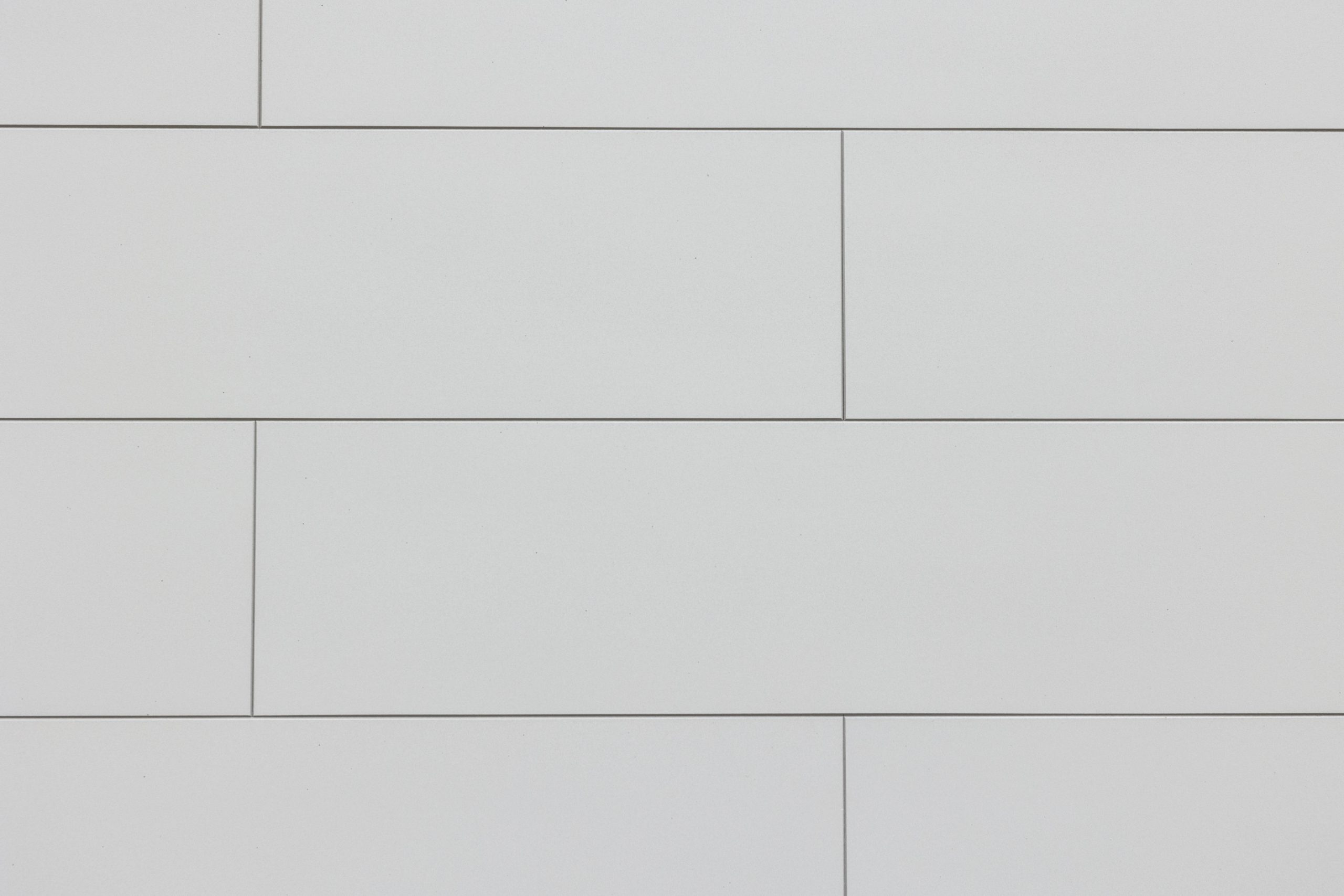

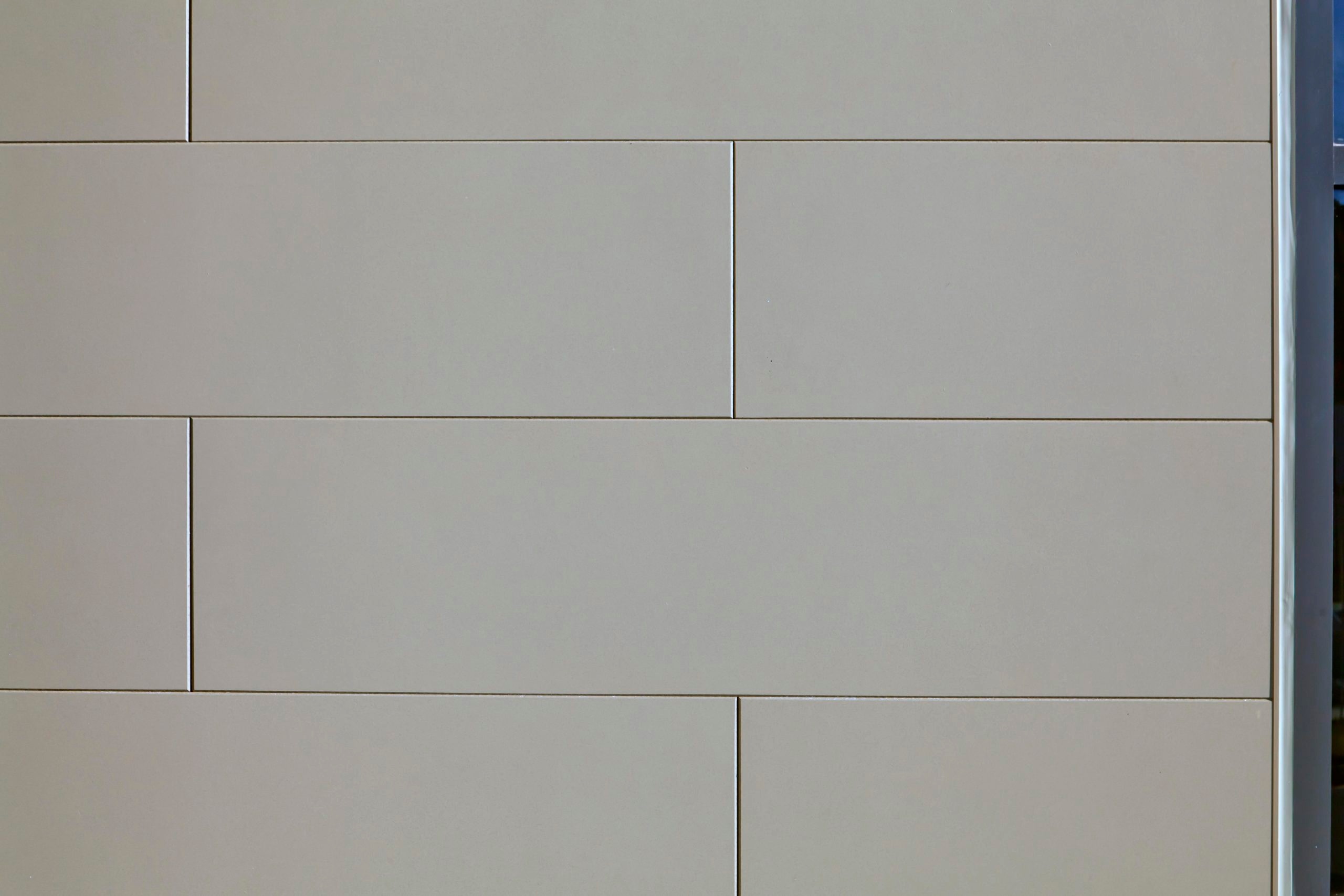

Texture Detail:

Gray

Gray
See Visualizer Get an Estimate

Together We Create

Modern block design that’s perfect for commercial or residential designs
  • Durable finish that pairs effortlessly with stainless steel, glass and wood finishes
  • Engineered with an integrated rainscreen
ArchitecturalBlock
VintageWood

Specifications

~6-foot Download
Dimensions (in.)
17 7/8 H x 71 9/16 L
Dimensions (actual mm)
455 H x 1818 L
Thickness (in.)
5/8
Thickness (actual mm)
16
Weight (lbs. per panel)
35.2
Weight (lbs. per sq. ft.)
3.9
Exposed Coverage (sq. ft. per panel)
8.88
Packaging (pieces per pack)
2 [17.76 SQ. FT.]
Panel Orientation
Horizontal

Project Possibilities

Explore how different Nichiha combinations can transform the same architectural design. One system, endless possibilities.
VintageBrick White Wash View Product VintageWood Redwood View Product
VintageWood Cedar View Product TuffBlock Steel View Product
EmpireBlock Gray View Product TuffBlock Pewter View Product
See Visualizer

Product Support

CAD Details Install Videos Product Catalogs
Product Specs Download BIM/Revit Install Document Design Review Guide Concrete Submittal Modern Submittal

The Engineered Performance of Nichiha

  1. The Ultimate Clip

    This creates a hidden fastening system that all but eliminates face fastening. Installation is quick and easy and never requires specialty contractors.

  2. Nichiha Architectural Wall Panels

    The panels are lightweight, easy to handle, and available in a virtually endless color palette and a diverse offering of textural finishes.

  3. Joint Tab Attachment

    Designed to support panel lateral stability, the tab helps vertical joints stay tightly closed and fastens to the Ultimate Clip with provided screws.

  4. Drained and Back-Ventilated Rainscreen

    This design allows water to escape and air to circulate, reducing the risk of mold and water damage inside the building.

  5. The Ultimate Starter Track

    This pulls double duty: it supports fast, level installation while its patented drainage channel directs water out and away from the base of the wall.

See Nichiha in Action

No matter if you are an experienced pro or homeowner, our tool can streamline your workflow and take the guesswork out of the process.
See Visualizer
  1. Upload a photo of your home or project.
  2. Instantly see any Nichiha product applied.
  3. Quickly change colors, formats, and orientations.

The same home exterior before and after applying Nichiha cladding.

Drag the divider, tap within the image, or focus the control and use the left and right arrow keys.

  • Aesthetic Design
  • Design Flexibility
  • Long-Term Performance
  • Fire Protection
  • Quick Installation

Project Spotlight

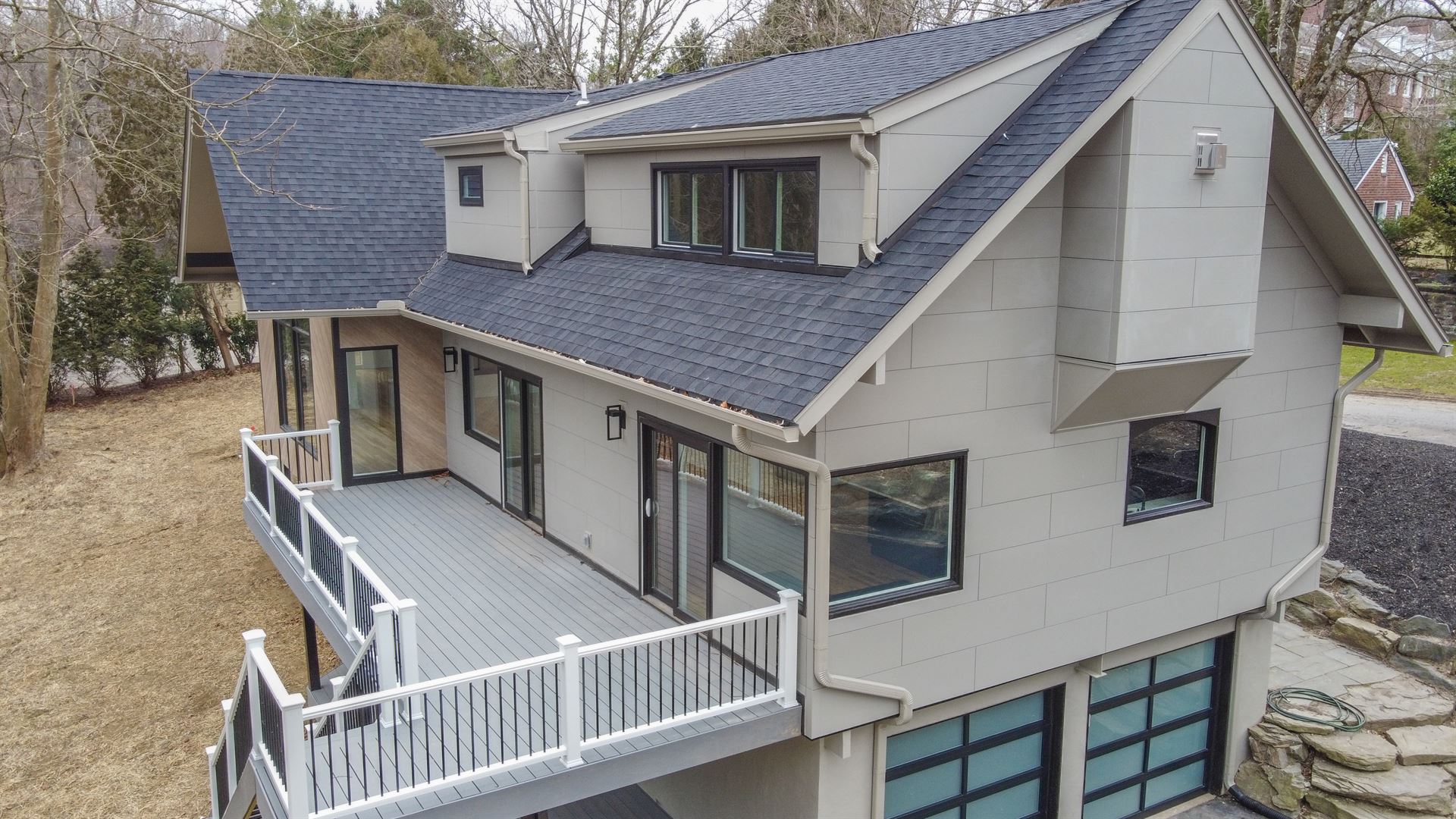

A HouseItLook Exterior Masterpiece

Ashley Wilson at HouseItLook had an expansive home to flip and needed a high-quality, stylish solution.
View Case Study

Featured Hardware

Related Products

Frequently Asked Questions

Yes. Nichiha offers clean, modern options like smooth concrete looks, contemporary wood grain and sleek metal finishes. Homeowners and custom builders often mix and match these textures to create high-end accent walls, entryways and modern facade designs.

Our awesome rep team is in every market around North America and is looking forward to assisting with your project. Please send details using the Contact a Rep form and someone will be in touch within 24 hours. In the meantime, you can also access pricing information here and order samples here.

Our Architectural Wall Panels are available in every market across North America. We can work with any local supplier. If you have a preferred supplier, please give them our information or Contact a Rep to find one near you.

We work with any local supplier. Some suppliers have our material in stock, others order as needed. If you have a preferred supplier, please give them our information or Contact a Rep to find one near you.
