Browse and Order Nichiha Samples For Free

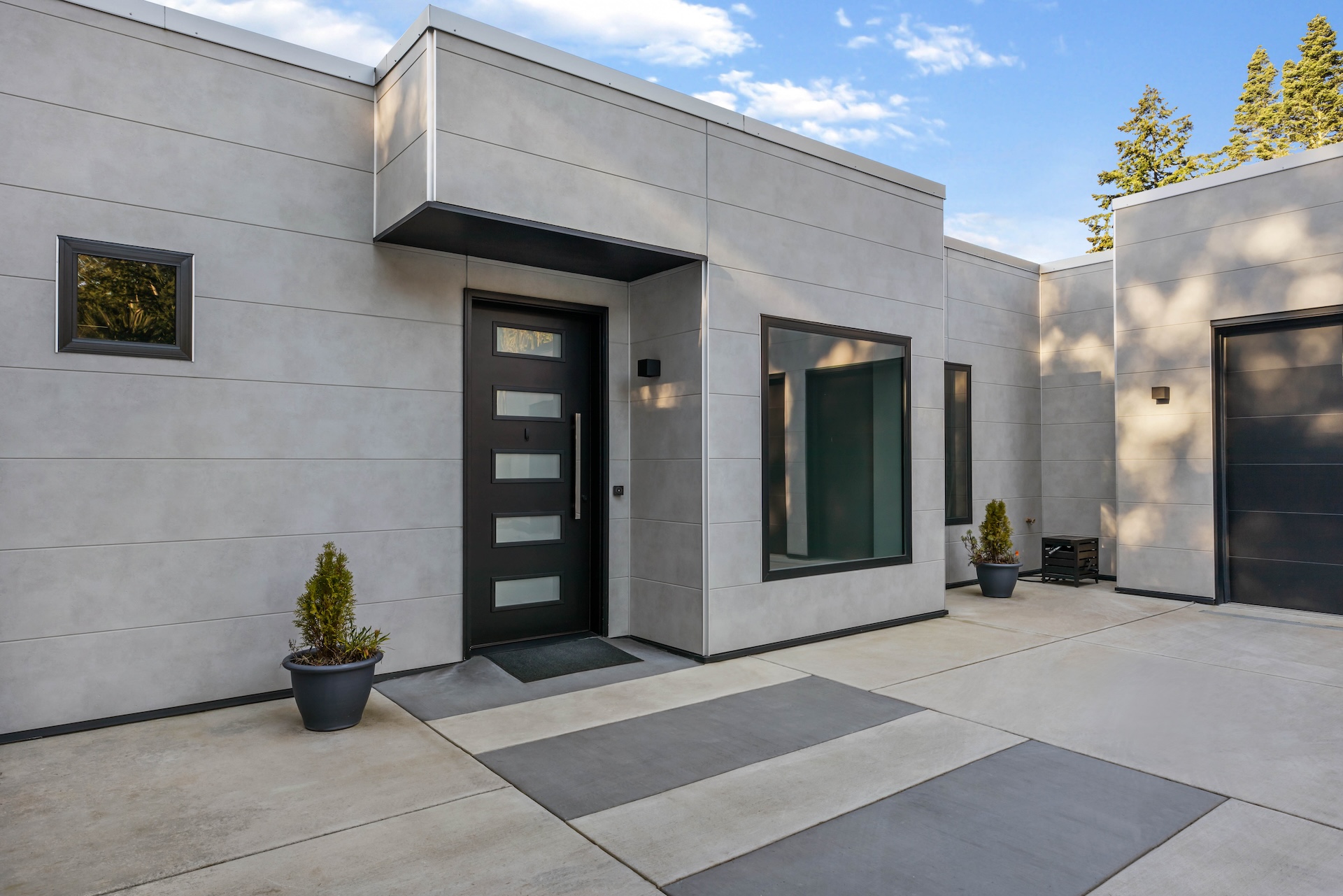

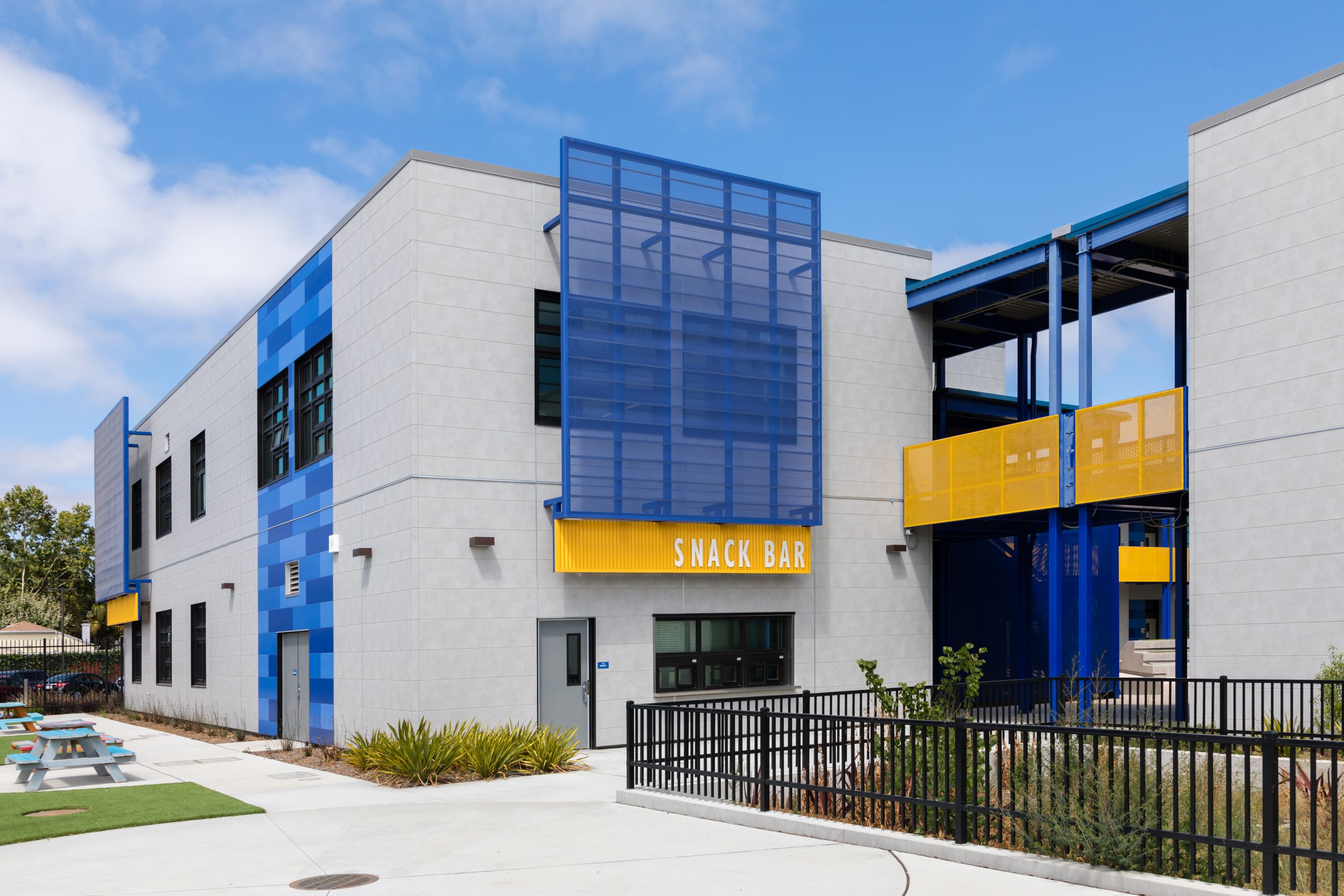

IndustrialBlock IndustrialBlock project application

IndustrialBlock

Concrete Series

Choose a product audience

Available Colors:

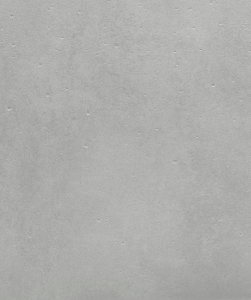

Texture Detail:

Gray

Gray
See Visualizer Get an Estimate

Together We Create

Nichiha's IndustrialBlock gives you the look of concrete with the strength and durability of fiber cement.
  • Natural concrete look with industrial appeal
  • Ideal for interior or exterior designs
  • Engineered with an integrated rainscreen
IndustrialBlock
Custom Illumination

Specifications

~10-foot
Dimensions (in.)
17 7/8 H x 119 5/16 L
Dimensions (actual mm)
455 H x 3030 L
Thickness (in.)
5/8
Thickness (actual mm)
16
Weight (lbs. per panel)
57.3
Weight (lbs. per sq. ft.)
3.8
Exposed Coverage (sq. ft. per panel)
14.81
Packaging (pieces per pack)
2 [29.62 SQ. FT.]
Panel Orientation
Horizontal or Vertical

Project Possibilities

Explore how different Nichiha combinations can transform the same architectural design. One system, endless possibilities.
VintageBrick White Wash View Product VintageWood Redwood View Product
IndustrialBlock Gray View Product VintageWood Cedar View Product TuffBlock Steel View Product
IndustrialBlock Gray View Product TuffBlock Pewter View Product
See Visualizer

Product Support

CAD Details Install Videos Case Studies Product Catalogs
Product Specs Download BIM/Revit

Install Documents

Download Horizontal Download Vertical
Design Review Guide Concrete Submittal

The Engineered Performance of Nichiha

  1. The Ultimate Clip

    This creates a hidden fastening system that all but eliminates face fastening. Installation is quick and easy and never requires specialty contractors.

  2. Nichiha Architectural Wall Panels

    The panels are lightweight, easy to handle, and available in a virtually endless color palette and a diverse offering of textural finishes.

  3. Joint Tab Attachment

    Designed to support panel lateral stability, the tab helps vertical joints stay tightly closed and fastens to the Ultimate Clip with provided screws.

  4. Drained and Back-Ventilated Rainscreen

    This design allows water to escape and air to circulate, reducing the risk of mold and water damage inside the building.

  5. The Ultimate Starter Track

    This pulls double duty: it supports fast, level installation while its patented drainage channel directs water out and away from the base of the wall.

See Nichiha in Action

No matter if you are an experienced pro or homeowner, our tool can streamline your workflow and take the guesswork out of the process.
See Visualizer
  1. Upload a photo of your home or project.
  2. Instantly see any Nichiha product applied.
  3. Quickly change colors, formats, and orientations.

The same home exterior before and after applying Nichiha cladding.

Drag the divider, tap within the image, or focus the control and use the left and right arrow keys.

  • Aesthetic Design
  • Design Flexibility
  • Long-Term Performance
  • Fire Protection
  • Quick Installation

Project Spotlight

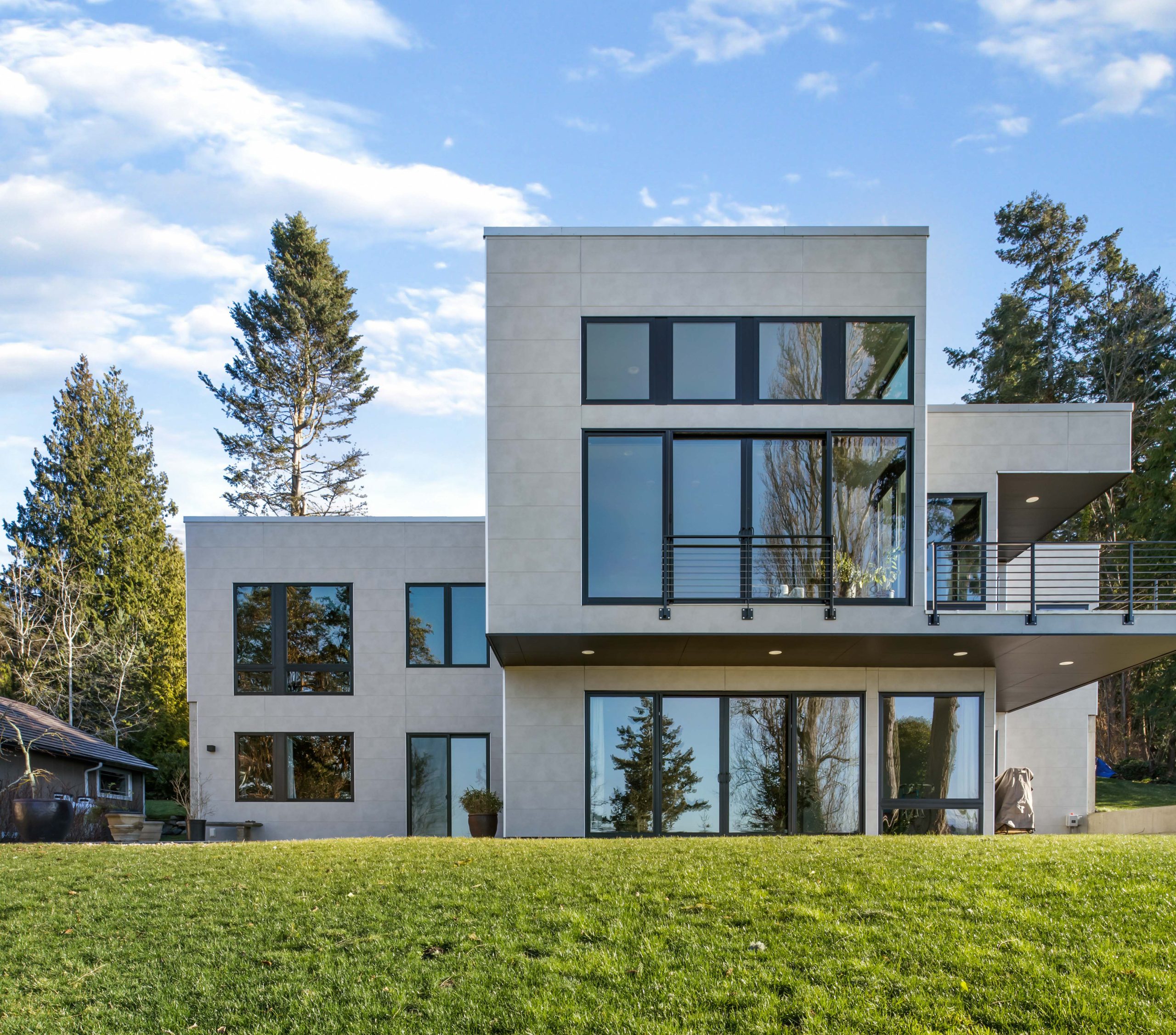

Building a Modern Home on the West Coast

Custom home building on the West Coast requires an extra level of care and concern when it comes to exterior product selection. Large temperature swings, harsh sunlight and ocean sea spray can cause the look you want to…
View Case Study
Modern two-story home with light gray wall panels and large windows

Featured Hardware

Related Products

Frequently Asked Questions

Our awesome rep team is in every market around North America and is looking forward to assisting with your project. Please send details using the Contact a Rep form and someone will be in touch within 24 hours. In the meantime, you can also access pricing information here and order samples here.

Residential projects can expect durable exterior performance and weather resistance, supporting long service life and stable appearance over time.

The panels require only periodic inspection of sealant joints, flashings, and fasteners. Cleaning is typically limited to light rinsing with water to remove dust or surface deposits.
