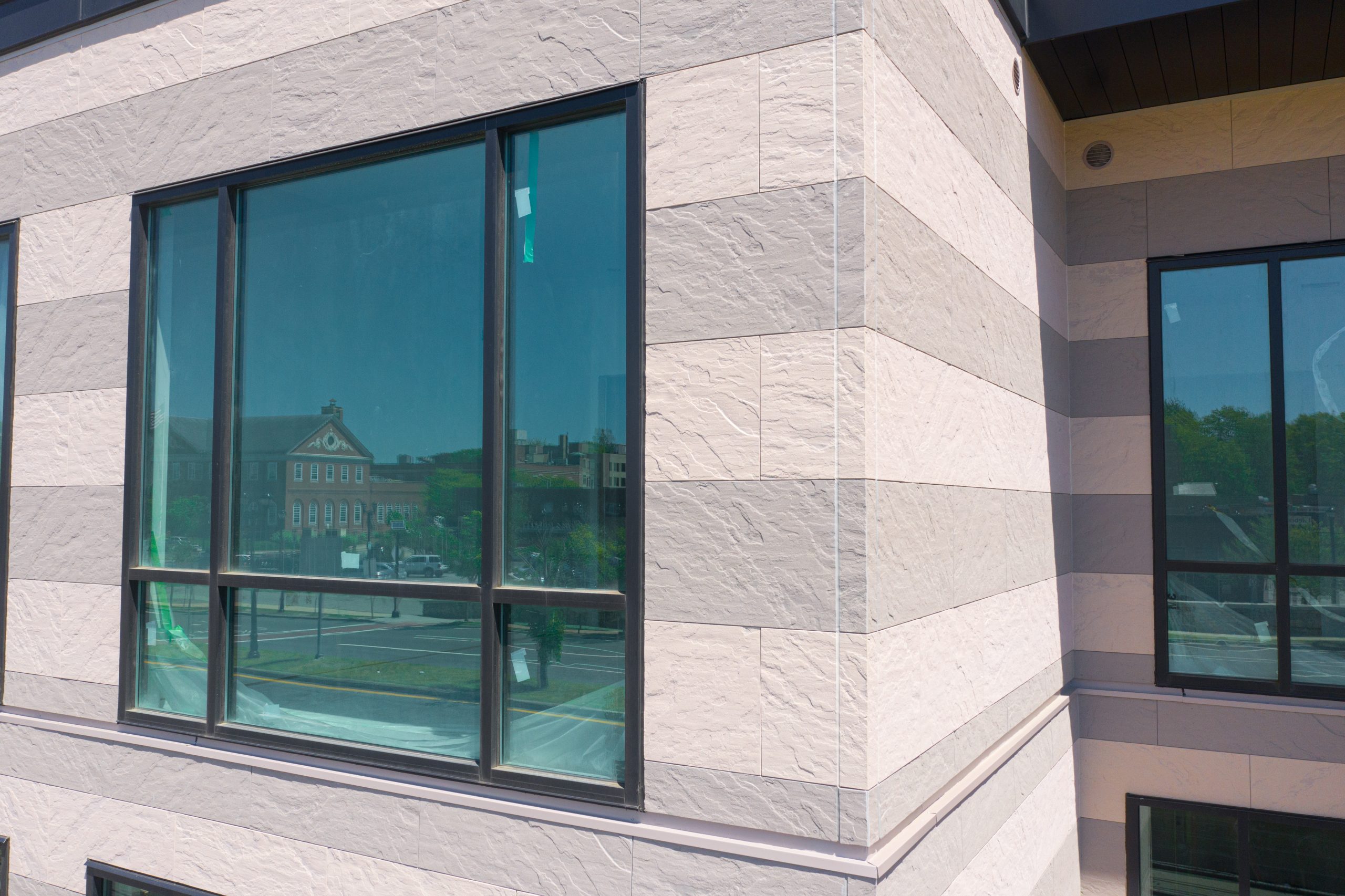

SandStone SandStone project application

SandStone

Masonry Series

Choose a product audience

Available Colors:

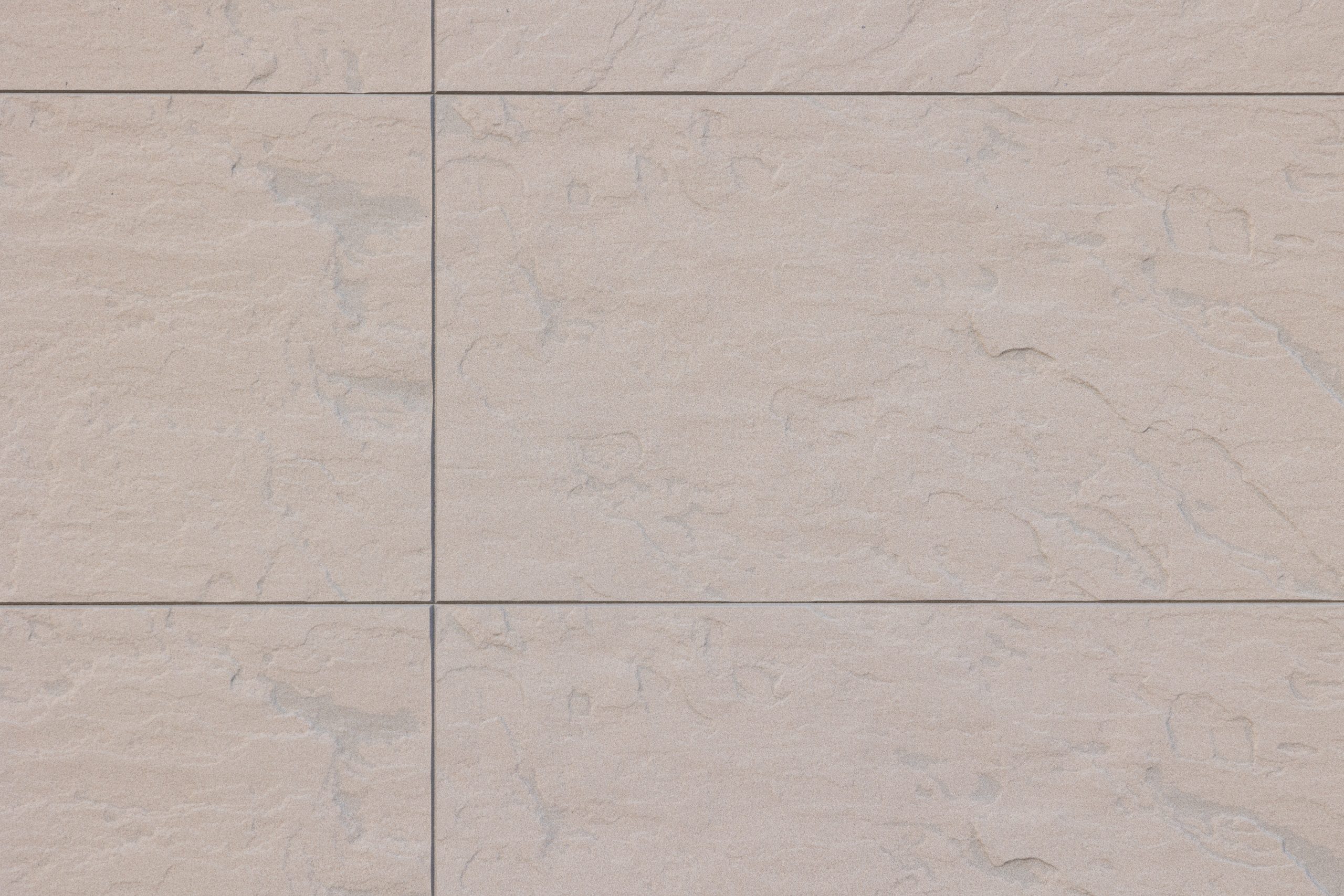

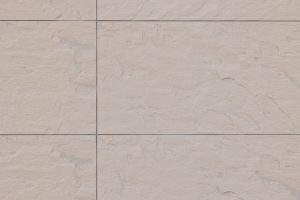

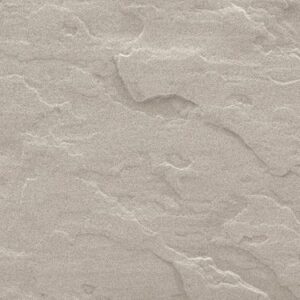

Texture Detail:

Autumn Brown

Autumn Brown
See Visualizer Get an Estimate

Together We Create

Nichiha's Masonry Series gives you the look of stucco with the durability of fiber cement.
  • Textured finish for a look that mimics stucco
  • Neutral color palette for design flexibility
  • Available in three colors with matching corners
  • Engineered with a built-in rainscreen

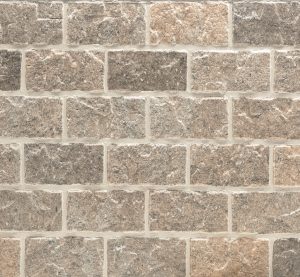

CanyonBrick
SandStone

Specifications

~6-foot
Dimensions (in.)
17 7/8 H x 71 9/16 L
Dimensions (actual mm)
455 H x 1818 L
Thickness (in.)
3/4
Thickness (actual mm)
18
Weight (lbs. per panel)
39.68
Weight (lbs. per sq. ft.)
4.41
Exposed Coverage (sq. ft. per panel)
8.88
Packaging (pieces per pack)
2 (17.76 SQ. FT.)
Panel Orientation
Horizontal

Project Possibilities

Explore how different Nichiha combinations can transform the same architectural design. One system, endless possibilities.
VintageBrick White Wash View Product VintageWood Redwood View Product
IndustrialBlock Gray View Product VintageWood Cedar View Product TuffBlock Steel View Product
IndustrialBlock Gray View Product TuffBlock Pewter View Product
See Visualizer

Product Support

CAD Details Install Videos Case Studies Product Catalogs
Products Specs Download BIM/Revit Install Documents Design Review Guide Masonry Submittal

The Engineered Performance of Nichiha

  1. The Ultimate Clip

    This creates a hidden fastening system that all but eliminates face fastening. Installation is quick and easy and never requires specialty contractors.

  2. Nichiha Architectural Wall Panels

    The panels are lightweight, easy to handle, and available in a virtually endless color palette and a diverse offering of textural finishes.

  3. Joint Tab Attachment

    Designed to support panel lateral stability, the tab helps vertical joints stay tightly closed and fastens to the Ultimate Clip with provided screws.

  4. Drained and Back-Ventilated Rainscreen

    This design allows water to escape and air to circulate, reducing the risk of mold and water damage inside the building.

  5. The Ultimate Starter Track

    This pulls double duty: it supports fast, level installation while its patented drainage channel directs water out and away from the base of the wall.

See Nichiha in Action

No matter if you are an experienced pro or homeowner, our tool can streamline your workflow and take the guesswork out of the process.
See Visualizer
  1. Upload a photo of your home or project.
  2. Instantly see any Nichiha product applied.
  3. Quickly change colors, formats, and orientations.

The same home exterior before and after applying Nichiha cladding.

Drag the divider, tap within the image, or focus the control and use the left and right arrow keys.

  • Aesthetic Design
  • Design Flexibility
  • Long-Term Performance
  • Fire Protection
  • Quick Installation

Project Spotlight

Center at Arrowhead

When The Center at Arrowhead (The Center) opened its doors in 2015, its goal was to provide exceptional care for patients, while making them feel at home.
View Case Study

Featured Hardware

Related Products

Frequently Asked Questions

Exceptional durability in freeze-thaw climates is a primary benefit. Unlike porous mortar joints that absorb water and crack under freezing temperatures, Nichiha’s fiber cement composition and ventilated rainscreen backing allow moisture to drain freely, protecting the facade from spalling and structural rot year-round.

Unlike porous natural stone or field-applied mortar that traps dirt and requires frequent power washing or tuckpointing, Nichiha panels and factory finishes are low-maintenance. A gentle wash with mild soap and water is all that is needed to keep the stone textures looking clean year-round.

Nichiha Stone Series offers the realistic appearance of natural stone without needing heavy structural footings, mortar or specialized stonemasons. They feature a built-in rainscreen and a clip-based dry-panel installation, eliminating cold-weather delays, mortar cracking and moisture trapping common to traditional stone veneer.
