Architectural Wall Panel – AWP 3030 – Vertical – CMU – Penetration – Plan
AWP - Vertical
Concrete/CMU
Openings & Penetrations

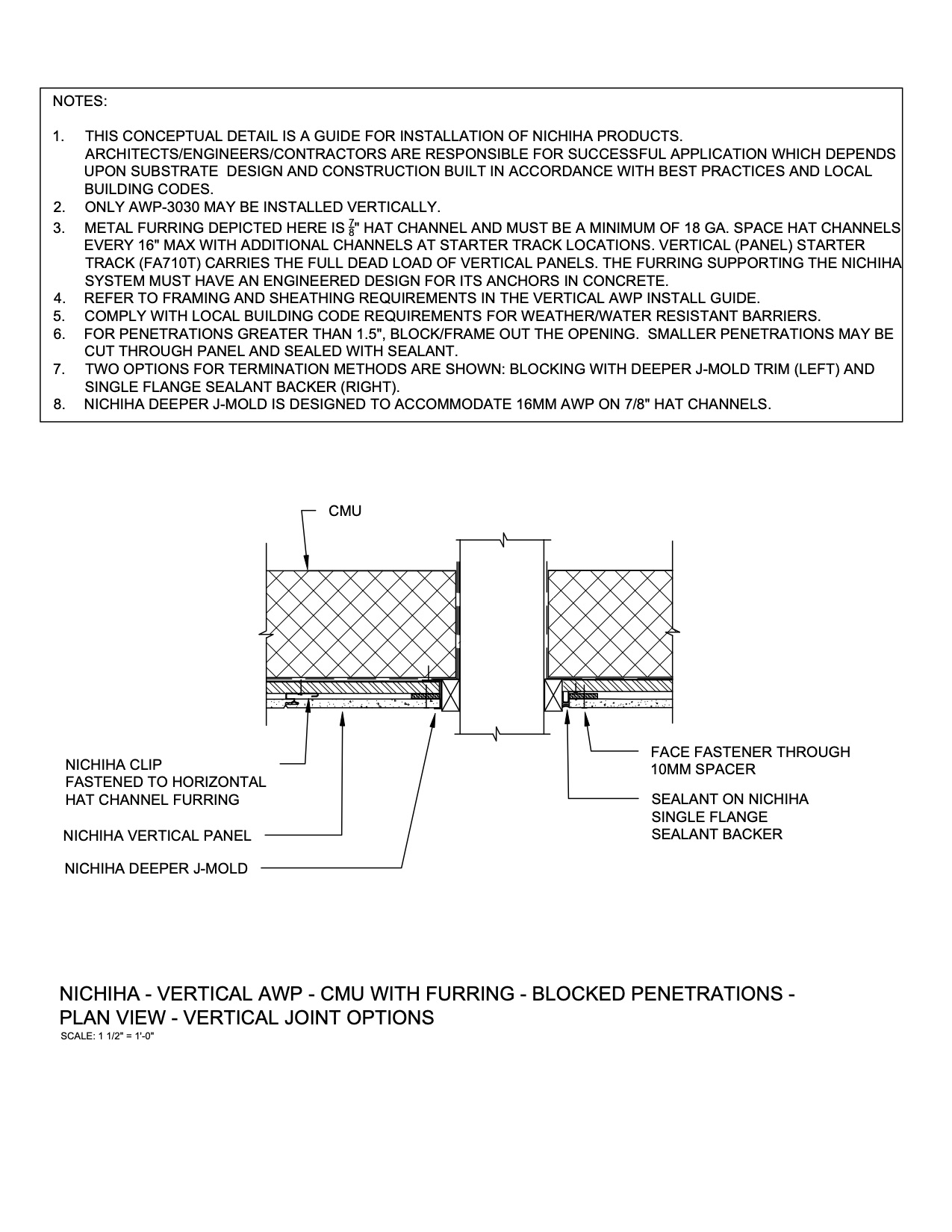

A plan view wall section of vertical Architectural Wall Panels (AWP) over CMU with furring and Ultimate Clips at a blocked penetration. Two detail options are shown: Deeper J-Mold trim or Single Flange Sealant Backer.
