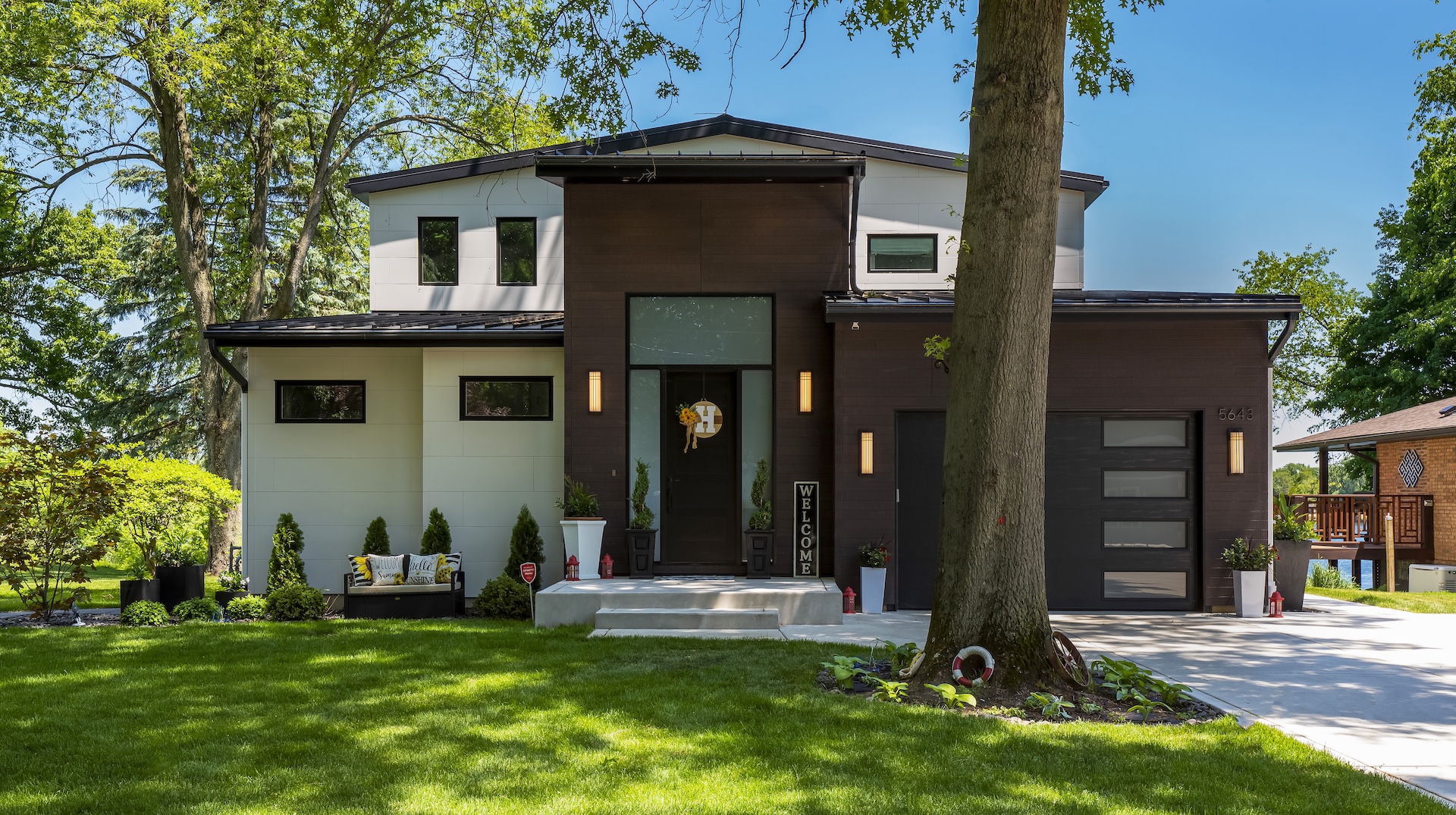

RoughSawn RoughSawn project application

RoughSawn

Wood Series

Choose a product audience

Available Colors:

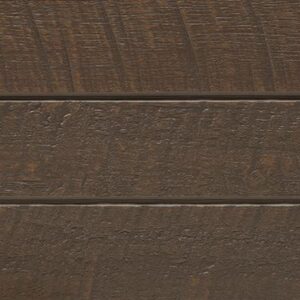

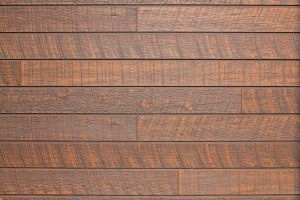

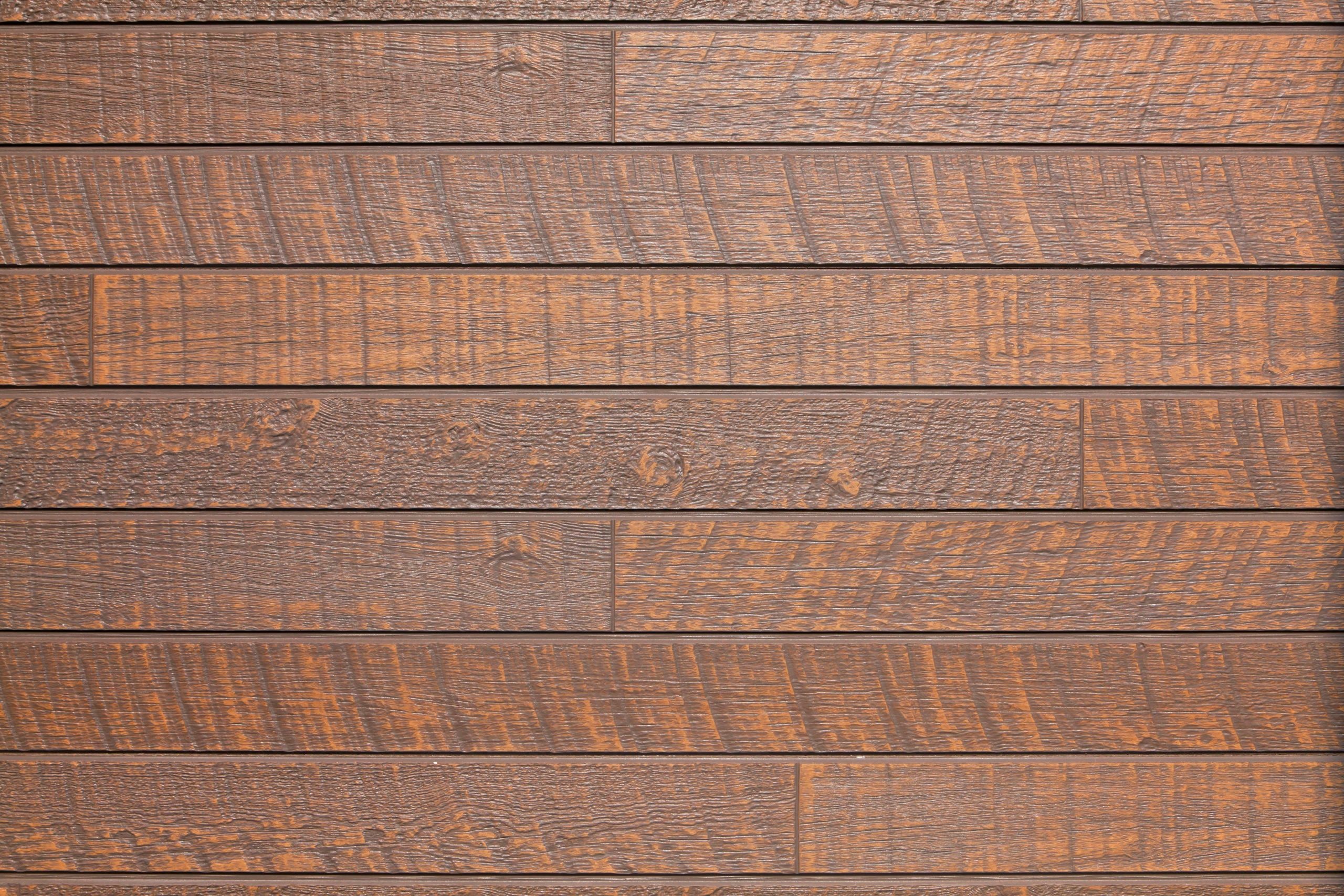

Texture Detail:

Espresso

Espresso
See Visualizer Get an Estimate

Together We Create

Nichiha's RoughSawn Architectural Wall Panels help you achieve the rustic look of wood siding with the strength and durability of fiber cement.
RoughSawn
VintageWood

Specifications

~10-foot
Dimensions (in.)
17 7/8 H x 119 5/16 L
Dimensions (actual mm)
455 H x 3030 L
Thickness (in.)
5/8
Thickness (actual mm)
16
Weight (lbs. per panel)
57.3
Weight (lbs. per sq. ft.)
3.8
Exposed Coverage (sq> ft. per panel)
14.81
Packaging (pieces per pack)
2 [29.62 SQ. FT.]
Panel Orientation
Horizontal or Vertical

Our Wood Series Products

Project Possibilities

Explore how different Nichiha combinations can transform the same architectural design. One system, endless possibilities.
VintageBrick White Wash View Product VintageWood Redwood View Product
IndustrialBlock Gray View Product VintageWood Cedar View Product TuffBlock Steel View Product
IndustrialBlock Gray View Product TuffBlock Pewter View Product
See Visualizer

Product Support

CAD Details Install Videos Case Studies Product Catalogs
Product Specs Download BIM/Revit

Install Documents

Download Horizontal Download Vertical
Wood Comparison Chart Design Review Guide RoughSawn Submittal

The Engineered Performance of Nichiha

  1. The Ultimate Clip

    This creates a hidden fastening system that all but eliminates face fastening. Installation is quick and easy and never requires specialty contractors.

  2. Nichiha Architectural Wall Panels

    The panels are lightweight, easy to handle, and available in a virtually endless color palette and a diverse offering of textural finishes.

  3. Joint Tab Attachment

    Designed to support panel lateral stability, the tab helps vertical joints stay tightly closed and fastens to the Ultimate Clip with provided screws.

  4. Drained and Back-Ventilated Rainscreen

    This design allows water to escape and air to circulate, reducing the risk of mold and water damage inside the building.

  5. The Ultimate Starter Track

    This pulls double duty: it supports fast, level installation while its patented drainage channel directs water out and away from the base of the wall.

See Nichiha in Action

No matter if you are an experienced pro or homeowner, our tool can streamline your workflow and take the guesswork out of the process.
See Visualizer
  1. Upload a photo of your home or project.
  2. Instantly see any Nichiha product applied.
  3. Quickly change colors, formats, and orientations.

The same home exterior before and after applying Nichiha cladding.

Drag the divider, tap within the image, or focus the control and use the left and right arrow keys.

  • Aesthetic Design
  • Design Flexibility
  • Long-Term Performance
  • Fire Protection
  • Quick Installation

Project Spotlight

Trauma-Informed Design

Brendan Sanchez is Principal with Access Architecture, a new firm in Vancouver that specializes in outcome-based design for its clients. Outcome and trauma-based design are becoming more popular and readily used approaches in order to better service the…
View Case Study

Featured Hardware

Related Products

Frequently Asked Questions

Nichiha fiber cement gives you the rich, authentic look of natural wood or stone without the heavy maintenance. Unlike natural wood, Nichiha is non-combustible and fire-resistant, while also resisting rot, warping and damage from pests. Unlike vinyl, it won’t melt, crack, or warp under extreme heat.

Our awesome rep team is in every market around North America and is looking forward to assisting with your project. Please send details using the Contact a Rep form and someone will be in touch within 24 hours. In the meantime, you can also access pricing information here and order samples here.

If you know the custom color(s) you want to use for your project, please send the paint manufacturer color name and color code, along with contact and project details, via our Contact a Rep form. Lead time for custom color samples is 2-3 weeks.

If you’re not quite ready to settle on a color, you may still want to check out the paint finish and sheen of our custom color available panels (Illumination, Ribbed, VintageWood Smooth or TuffBlock). For this, we recommend ordering one of our pre-stocked samples from our online store. Samples ship within 24-48 hours.
