Architectural Wall Panel – Prefab/Offsite – Vertical AWP – Horizontal Joint
> 1" Foam Plastic
AWP - Vertical
Mineral Wool
Movement Joints

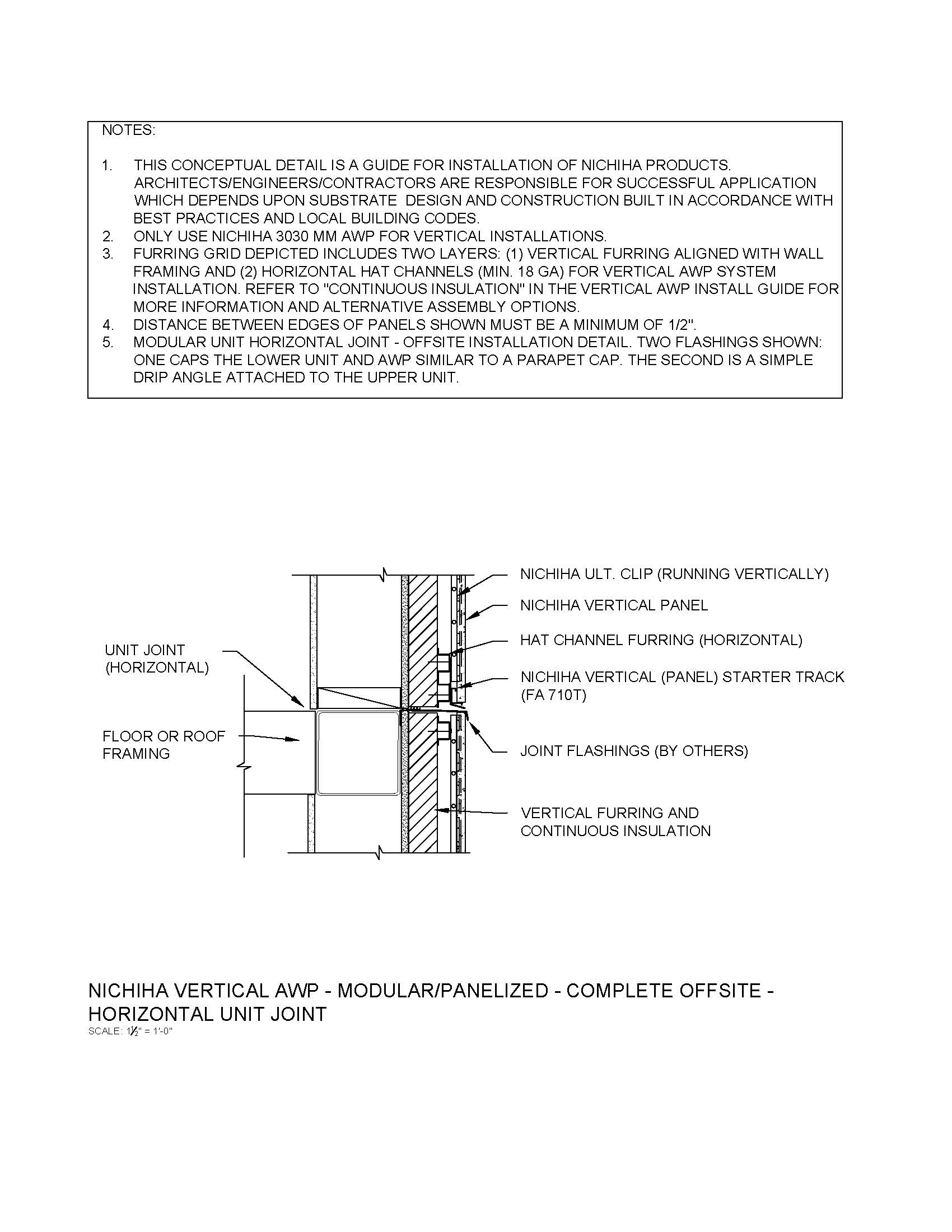

A section view of vertical Architectural Wall Panels (AWP) on prefab/modular units meeting at a horizontal unit joint. AWP are installed offsite and are jointed onsite with a specialized horizontal/compression joint. A continuous insulation and furring grid assembly are depicted.
