Architectural Wall Panel – Prefab/Offsite – Vertical AWP – Vertical Joint – Field Completion

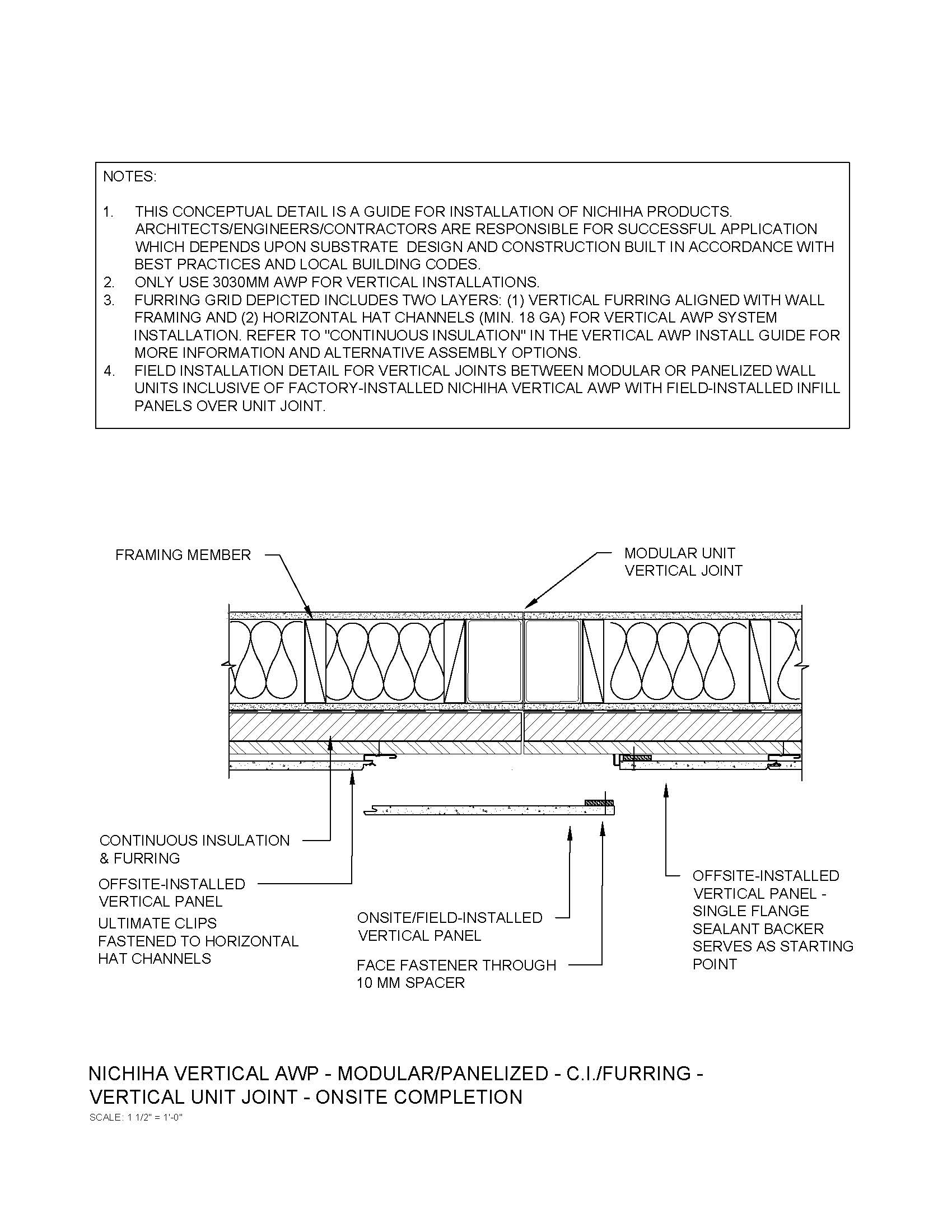

A plan view of vertical Architectural Wall Panels (AWP) on prefab/modular units meeting at a vertical unit joint. AWP are mainly installed offsite and jointed onsite utilizing field-installed, infill panels and a vertical control/expansion (sealant) joint. Continuous insulation and a furring grid are depicted.
