Architectural Wall Panel – Prefab/Offsite – Vertical AWP – Vertical Joint
> 1" Foam Plastic
AWP - Vertical
Mineral Wool
Movement Joints

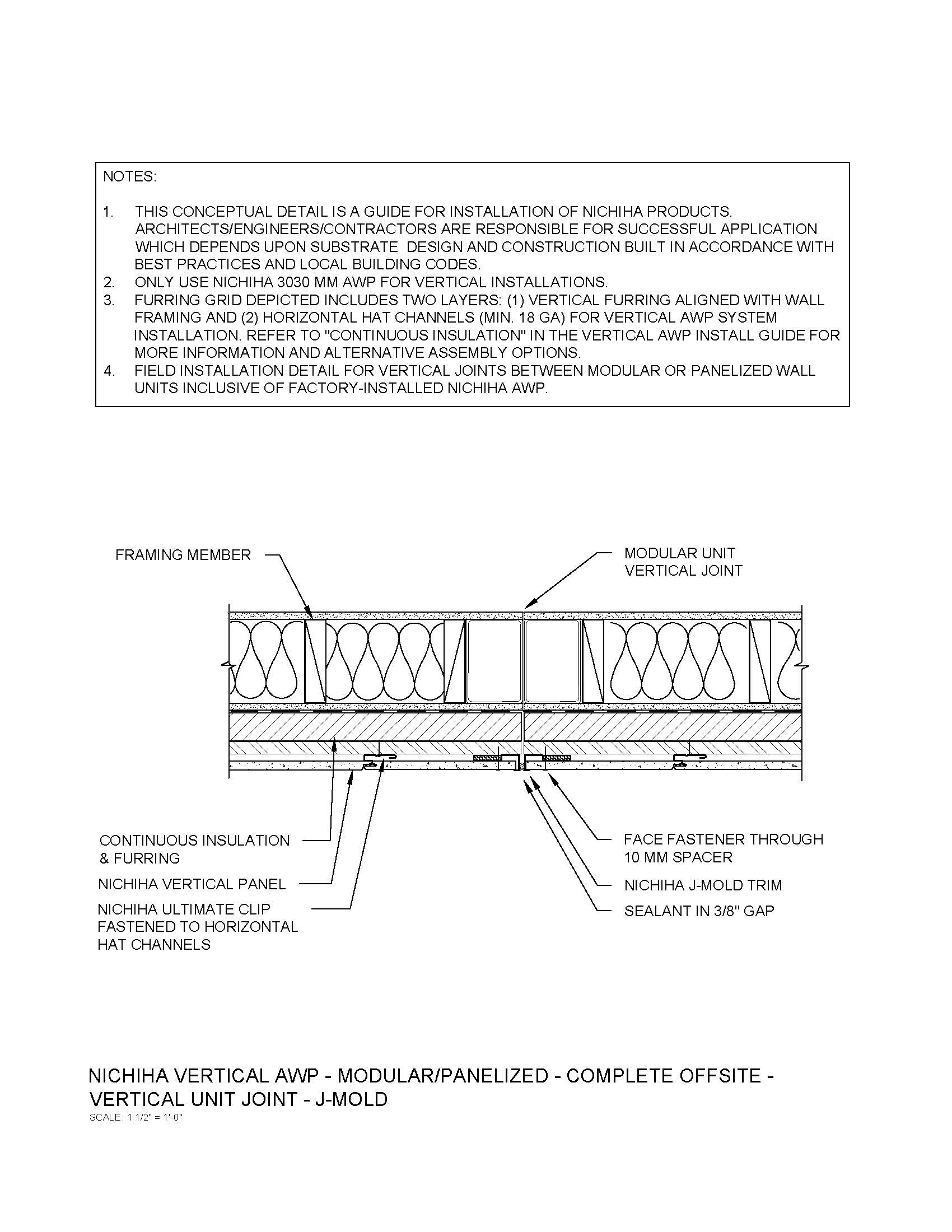

A plan view of vertical Architectural Wall Panels (AWP) on prefab/modular units meeting at a vertical unit joint. AWP are installed offsite with vertical edges at the unit joints capped by J-Mold trim. A continuous insulation and furring grid assembly are depicted.
