Architectural Wall Panel – Vertical – Window Jamb – Flush

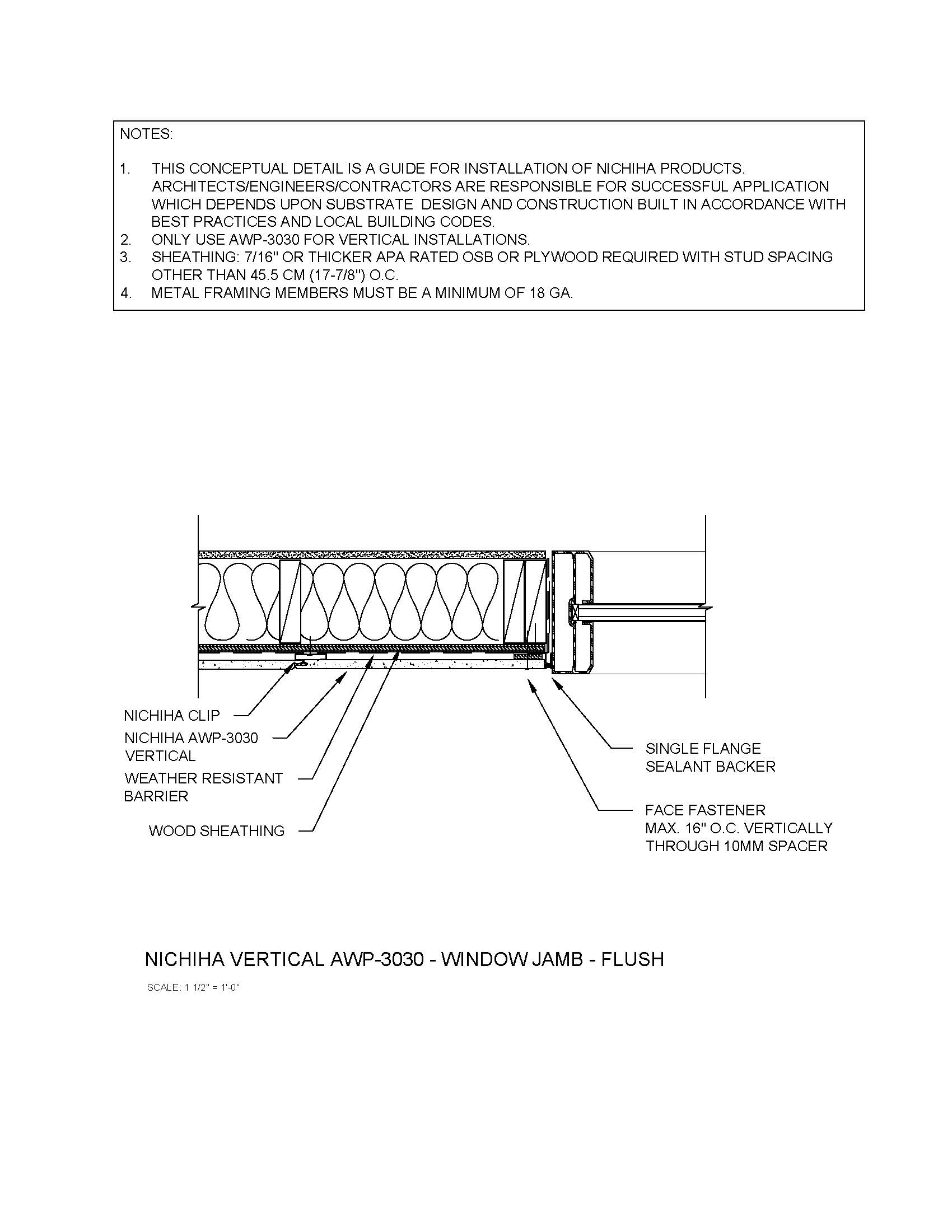

A plan view of vertical Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a flush window jamb with Single Flange Sealant Backer. *Note: Revit (.rvt) files contain complete sets of details for the same product and assembly configuration and only need to be selected and downloaded once.*
