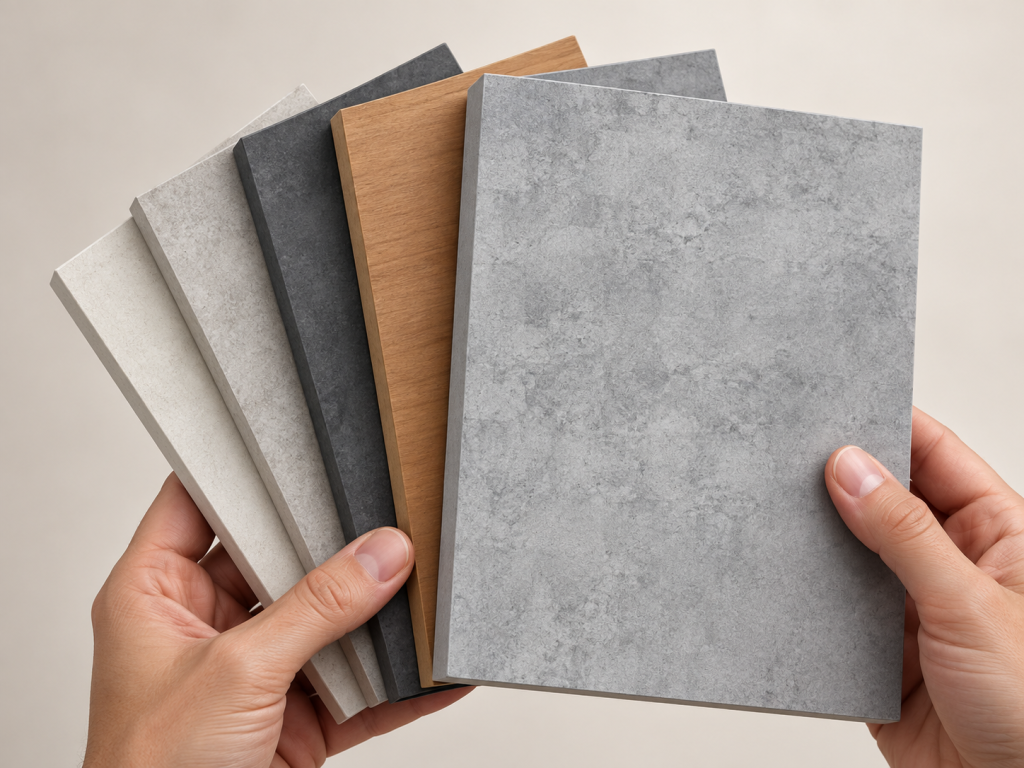

Browse and Order Nichiha Samples For Free

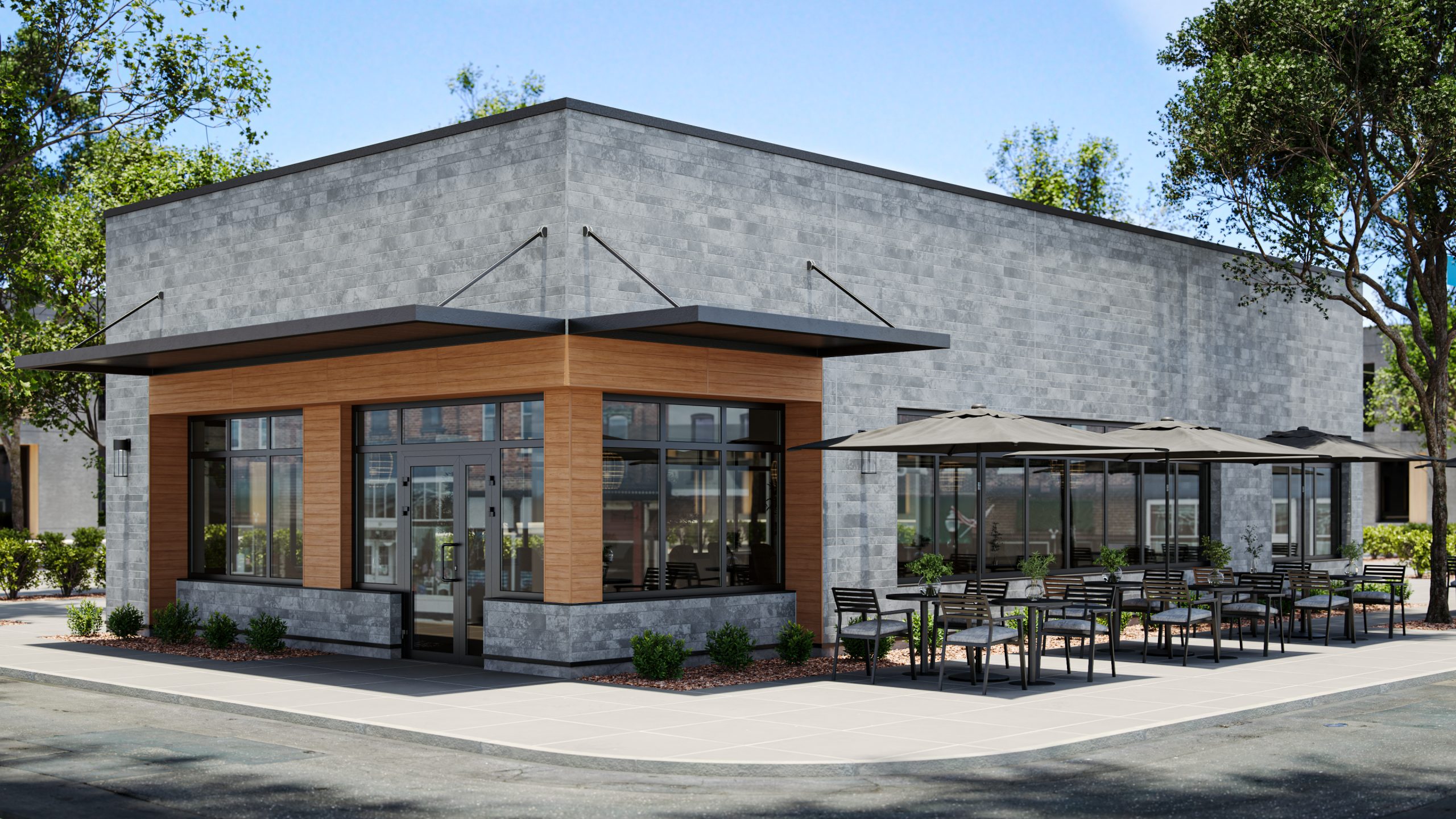

ConcreteBoard ConcreteBoard project application

ConcreteBoard

Concrete Series

Choose a product audience

Available Colors:

Texture Detail:

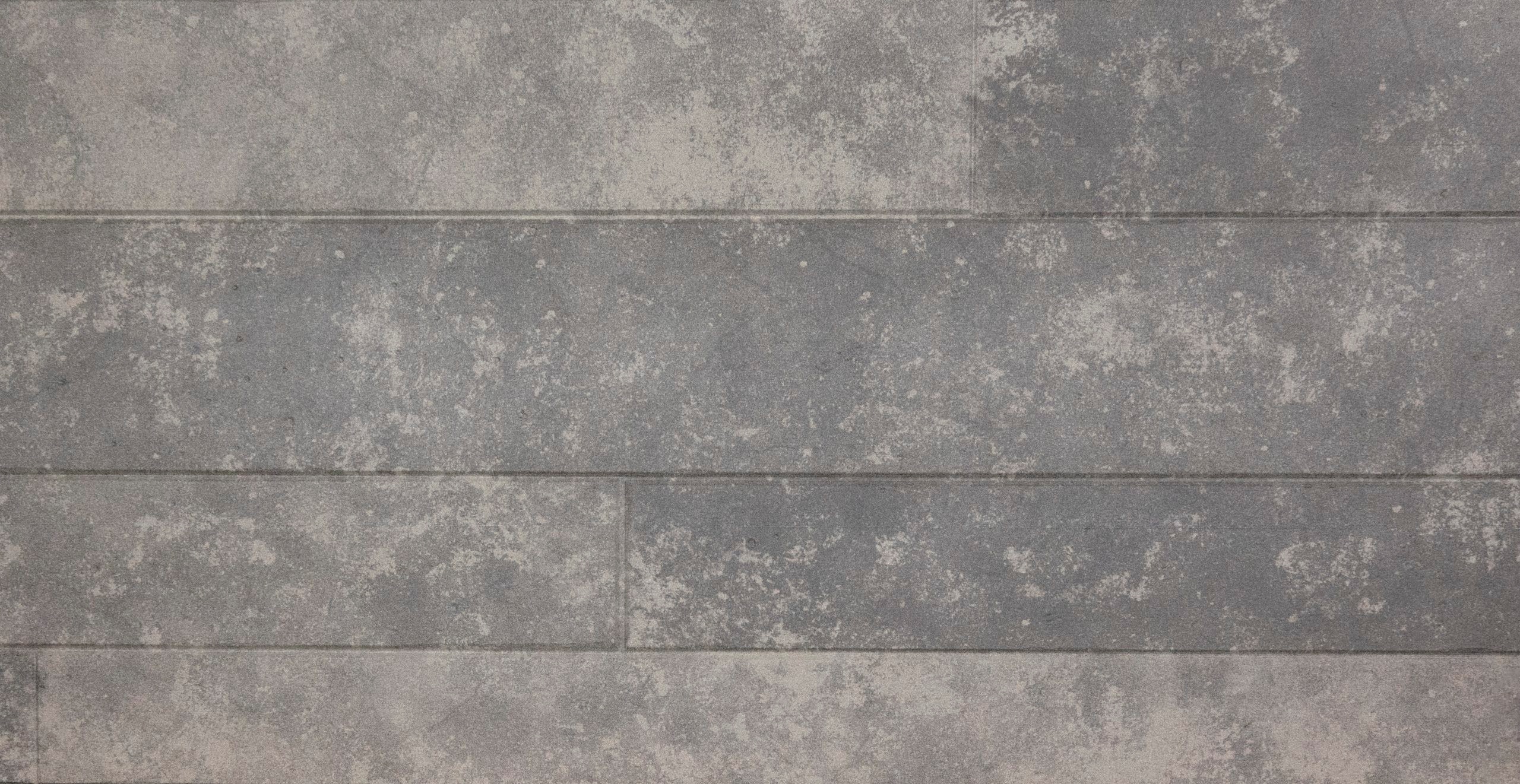

ConcreteBoard

ConcreteBoard
See Visualizer Get an Estimate

Together We Create

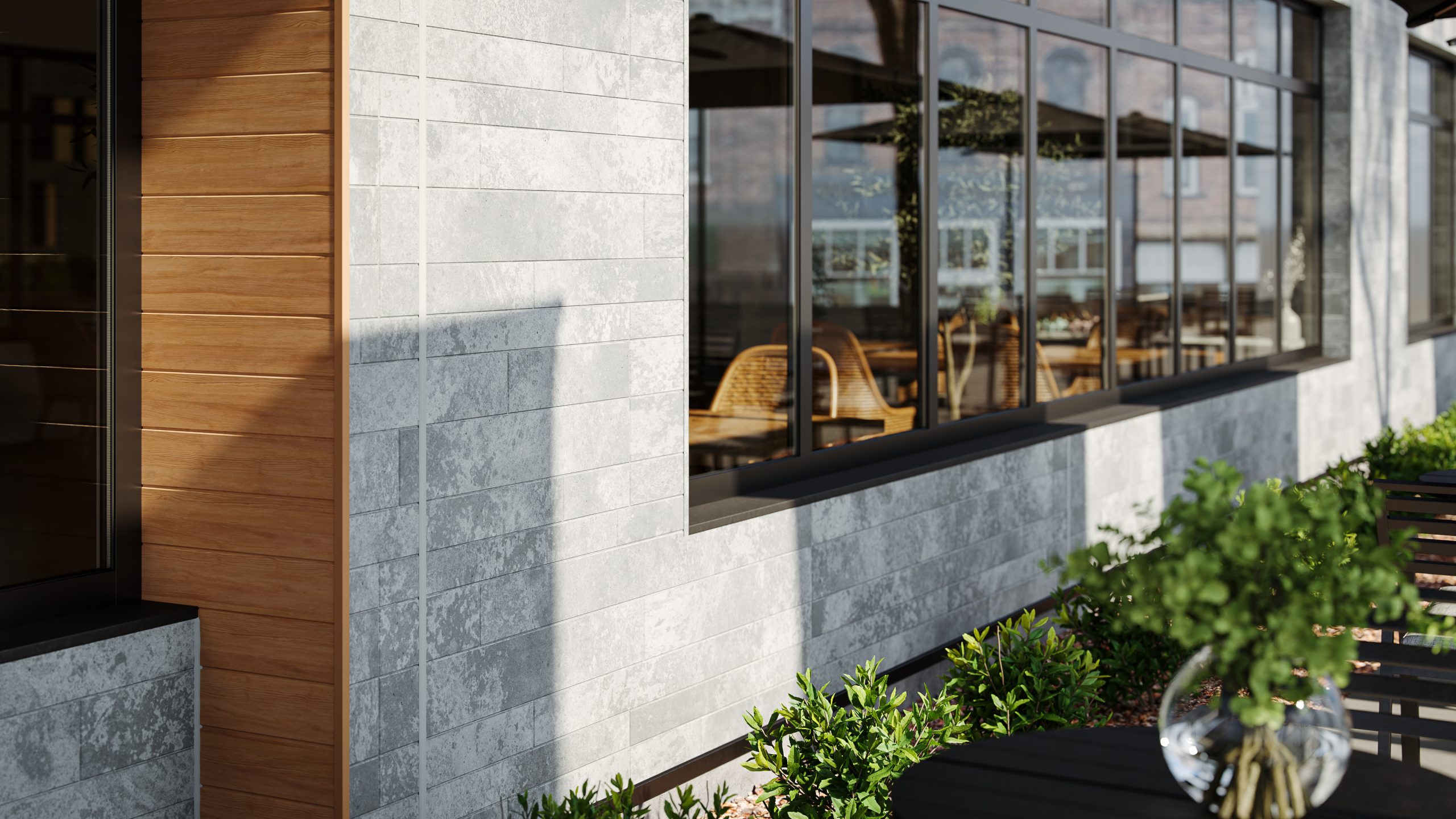

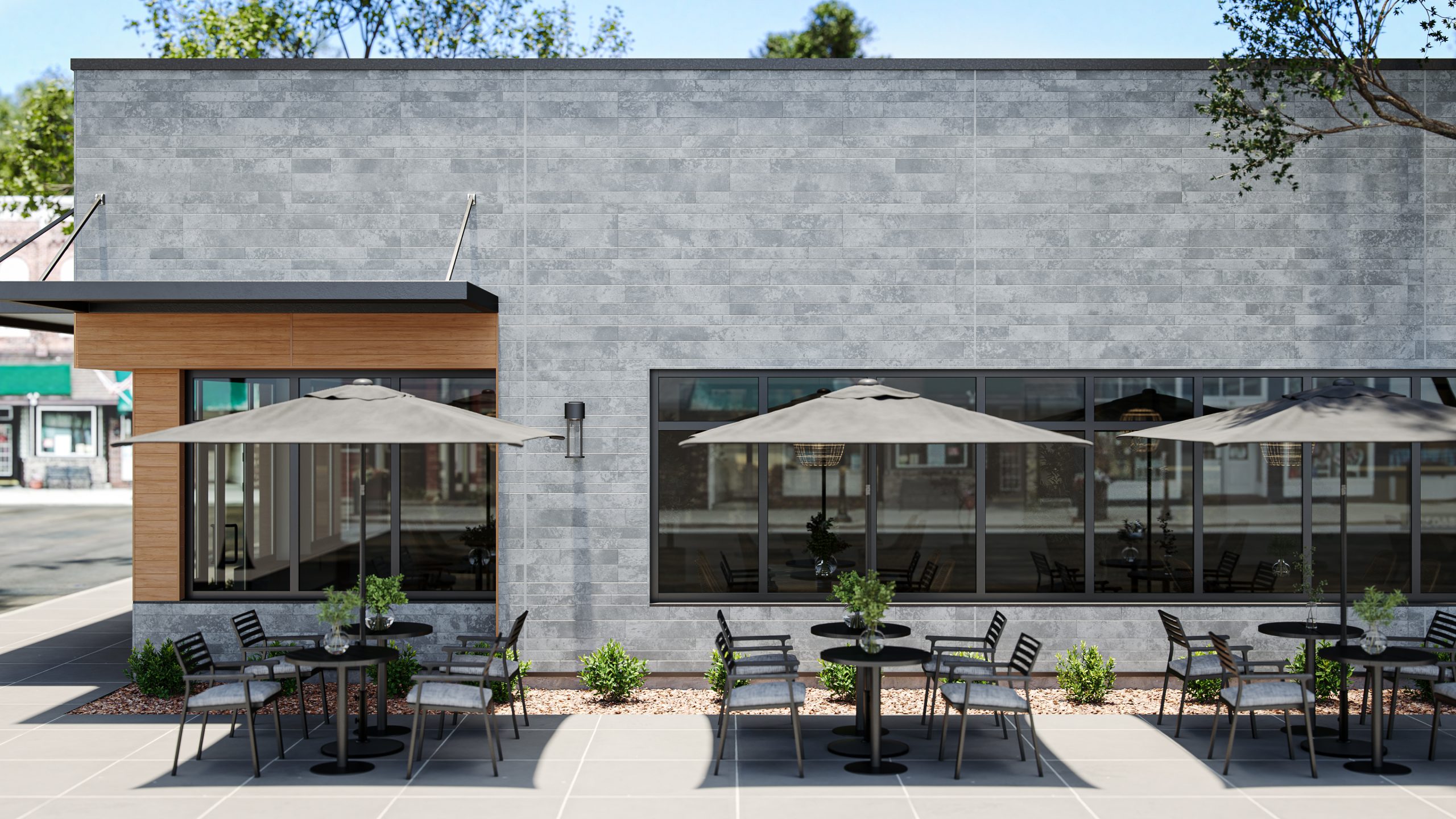

ConcreteBoard Panels are ideal for industrial designs
  • Authentic weathered concrete look ideal for industrial designs
  • Staggered boards of four varying heights per panel add visual depth and complexity
  • The appearance and feel of concrete without the time and cost of traditional masonry
ConcreteBoard

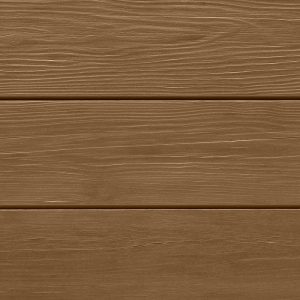

VintageWood

Specifications

~6-foot
Dimensions (in.)
17 7/8 H x 71 9/16 L
Dimensions (actual mm)
455 H x 1818 L
Thickness (in.)
5/8
Thickness (actual mm)
16
Weight (lbs. per panel)
40
Weight (lbs. per sq. ft.)
4.5
Exposed Coverage (sq. ft. per panel)
8.88
Packaging (pieces per pack)
2 [17.76 sq. ft.]
Panel Orientation
Horizontal

Project Possibilities

Explore how different Nichiha combinations can transform the same architectural design. One system, endless possibilities.
ConcreteBoard ConcreteBoard View Product ConcreteBoard View Product
IndustrialBlock Gray View Product VintageWood Cedar View Product TuffBlock Steel View Product
IndustrialBlock Gray View Product TuffBlock Pewter View Product
See Visualizer

Product Support

CAD Details Installation Videos Product Catalogs
Product Specs Download BIM/Revit Install Documents Design Review Guide Concrete Submittal

The Engineered Performance of Nichiha

  1. The Ultimate Clip

    This creates a hidden fastening system that all but eliminates face fastening. Installation is quick and easy and never requires specialty contractors.

  2. Nichiha Architectural Wall Panels

    The panels are lightweight, easy to handle, and available in a virtually endless color palette and a diverse offering of textural finishes.

  3. Joint Tab Attachment

    Designed to support panel lateral stability, the tab helps vertical joints stay tightly closed and fastens to the Ultimate Clip with provided screws.

  4. Drained and Back-Ventilated Rainscreen

    This design allows water to escape and air to circulate, reducing the risk of mold and water damage inside the building.

  5. The Ultimate Starter Track

    This pulls double duty: it supports fast, level installation while its patented drainage channel directs water out and away from the base of the wall.

See Nichiha in Action

No matter if you are an experienced pro or homeowner, our tool can streamline your workflow and take the guesswork out of the process.
See Visualizer
  1. Upload a photo of your home or project.
  2. Instantly see any Nichiha product applied.
  3. Quickly change colors, formats, and orientations.

The same home exterior before and after applying Nichiha cladding.

Drag the divider, tap within the image, or focus the control and use the left and right arrow keys.

  • Aesthetic Design
  • Design Flexibility
  • Long-Term Performance
  • Fire Protection
  • Quick Installation

Project Spotlight

Building a Modern Home on the West Coast

Custom home building on the West Coast requires an extra level of care and concern when it comes to exterior product selection. Large temperature swings, harsh sunlight and ocean sea spray can cause the look you want to…
View Case Study

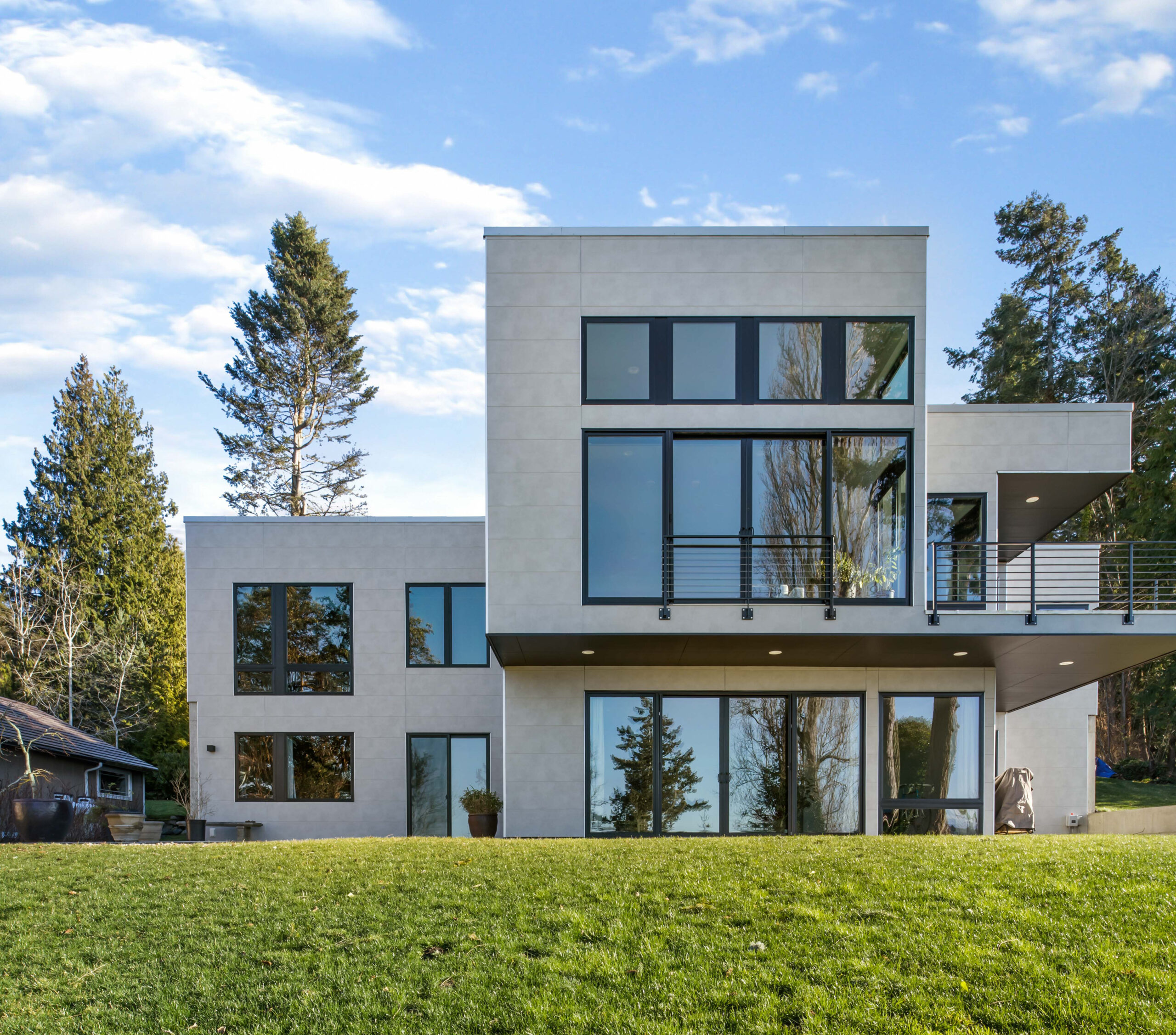

Modern two-story home with light gray wall panels and large windows

Featured Hardware

Related Products

Frequently Asked Questions

Yes. Because the Concrete Series is a 100% dry-panel system, installation requires no wet mixing or temperature-sensitive curing. Crews can continue installation throughout freezing winter months without cold-weather delays or heating enclosures.

No. Unlike raw poured concrete or masonry block that absorbs moisture and requires periodic sealing to avoid efflorescence and staining, Nichiha panels feature factory-applied protective finishes that maintain color stability and weather protection without routine sealing.

Unlike cast-in-place or precast concrete, Nichiha panels add minimal dead load to the building envelope. This eliminates the need for reinforced foundations, continuous ledges or heavy cranes on site. Additionally, while traditional concrete is prone to cracking and water absorption, Nichiha utilizes a built-in rainscreen system that actively protects against moisture intrusion.
