Architectural Wall Panel – Blocked Penetration – Plan View
≤ 1" Foam Plastic
AWP - Horizontal
Openings & Penetrations
Studwall

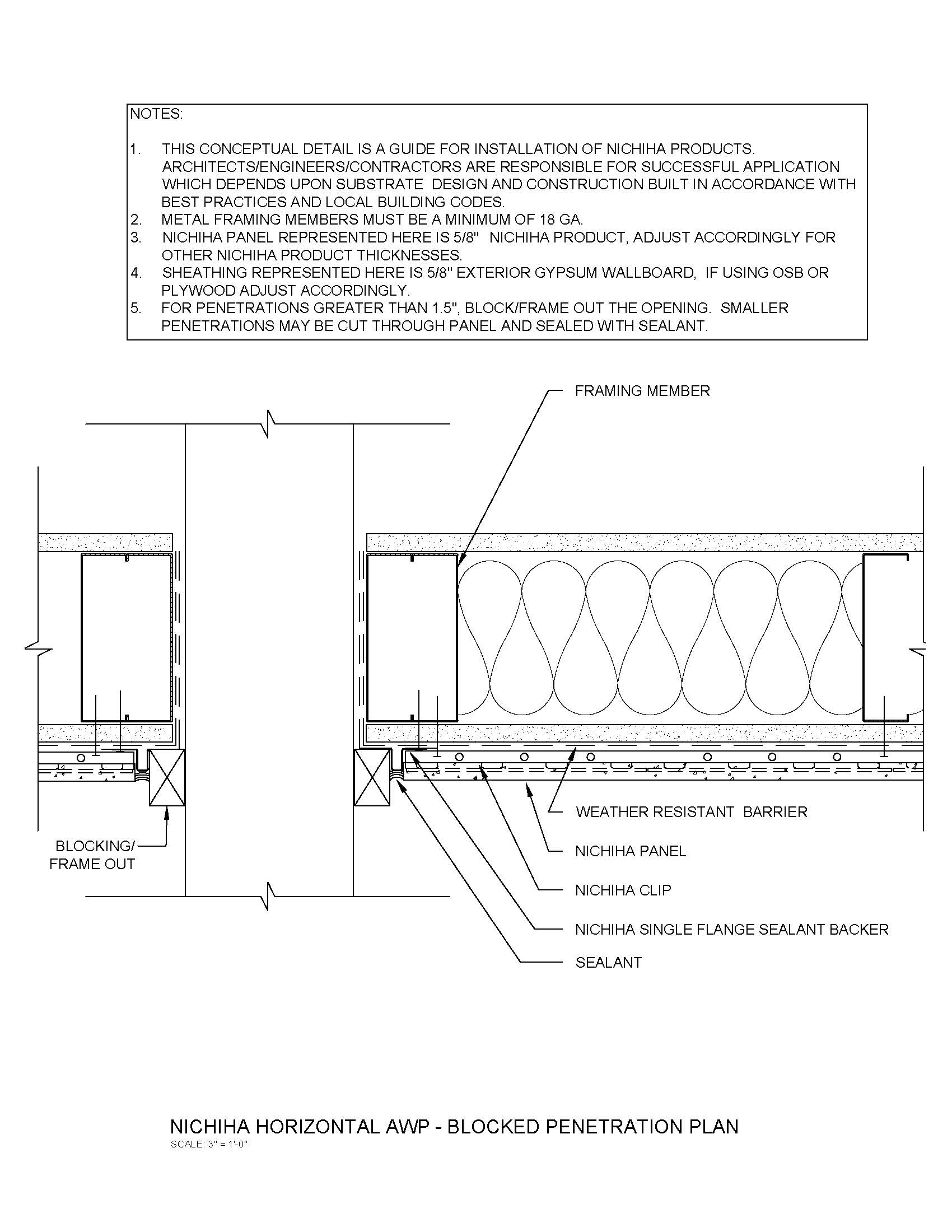

A plan view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a blocked penetration. *Note: Revit (.rvt) files contain complete sets of details for the same product and assembly configuration and only need to be selected and downloaded once.*
