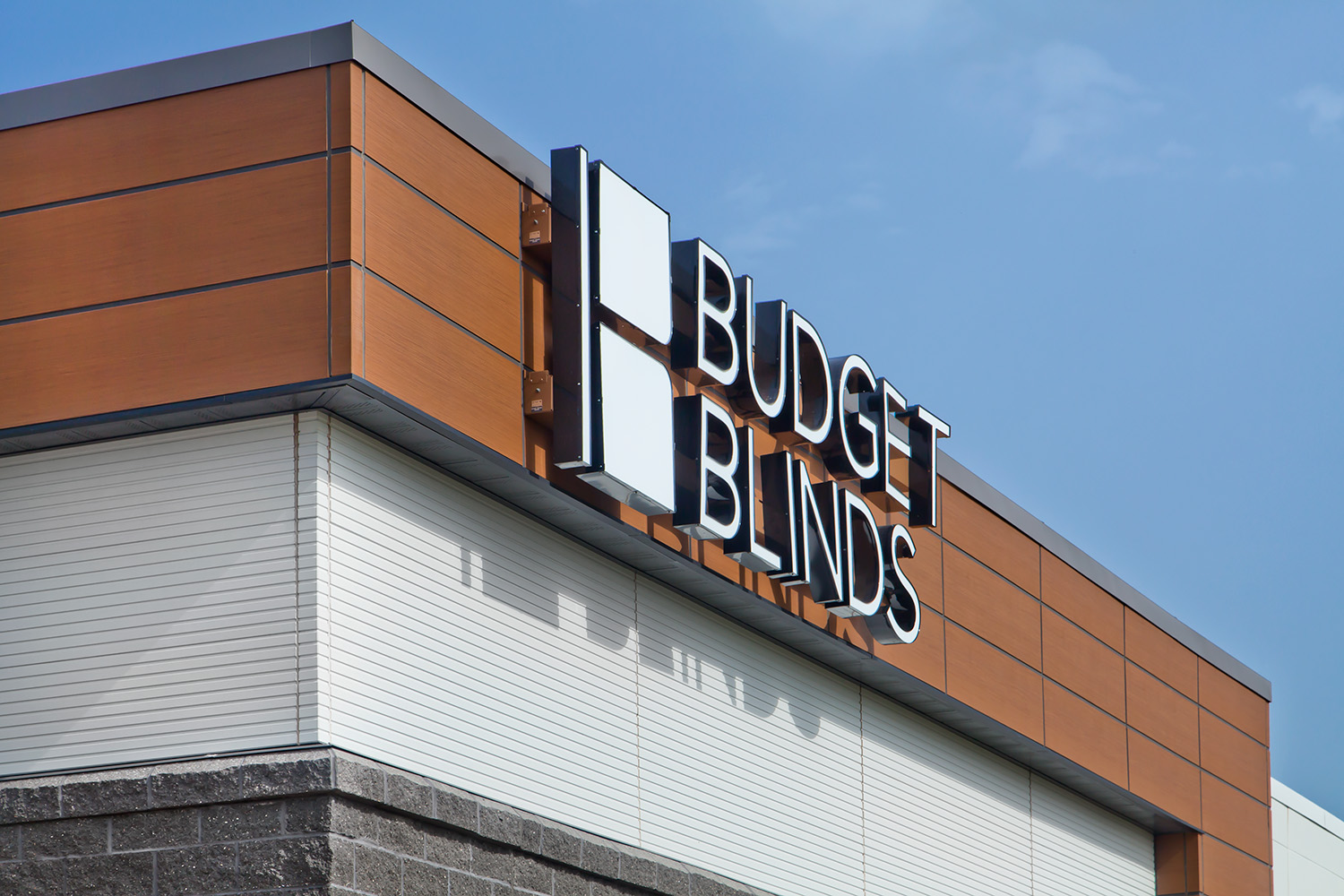

RiftSawn RiftSawn project application

RiftSawn

Wood Series

Choose a product audience

Available Colors:

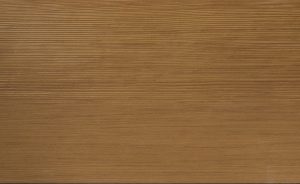

Texture Detail:

Pecan

Pecan

Together We Create

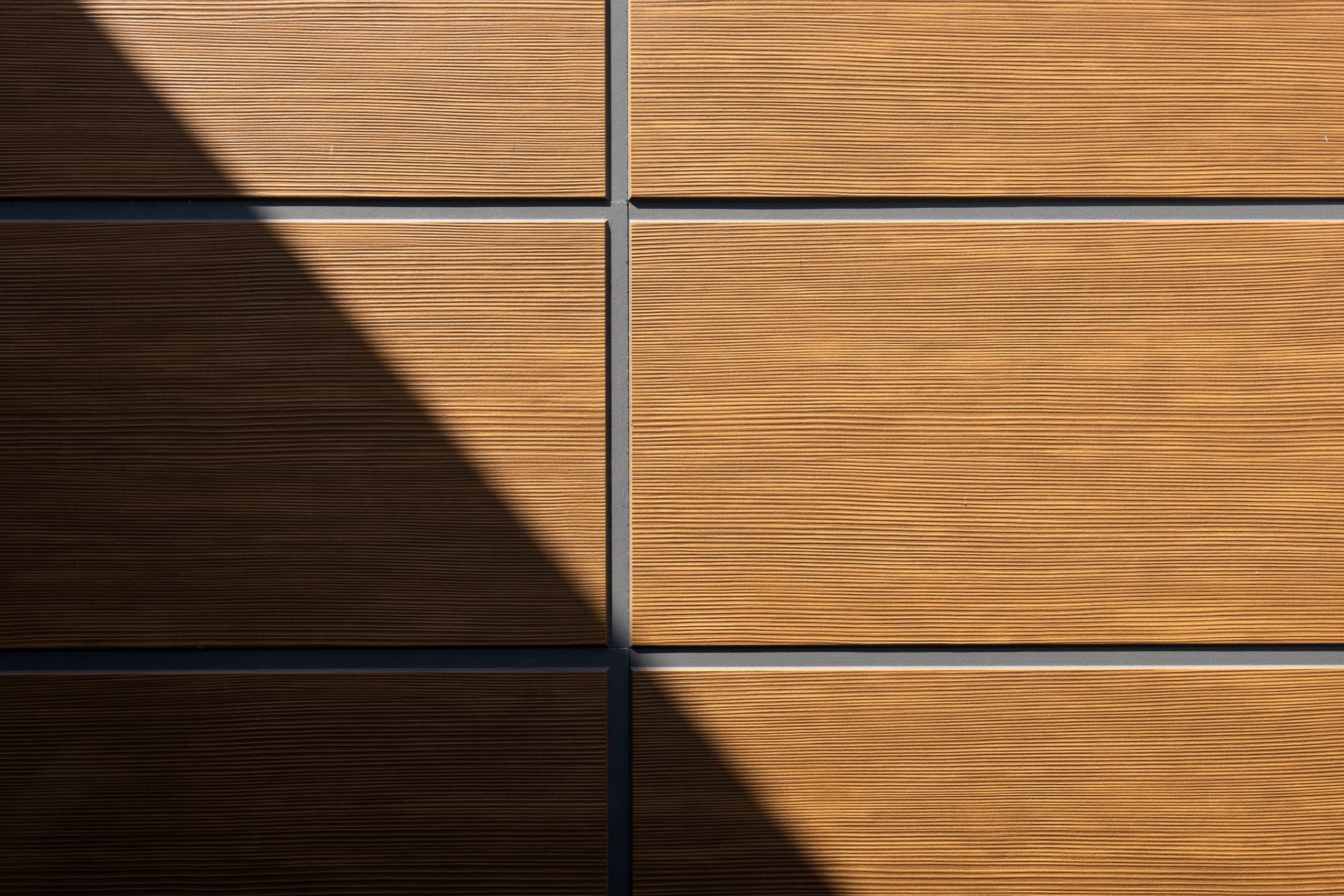

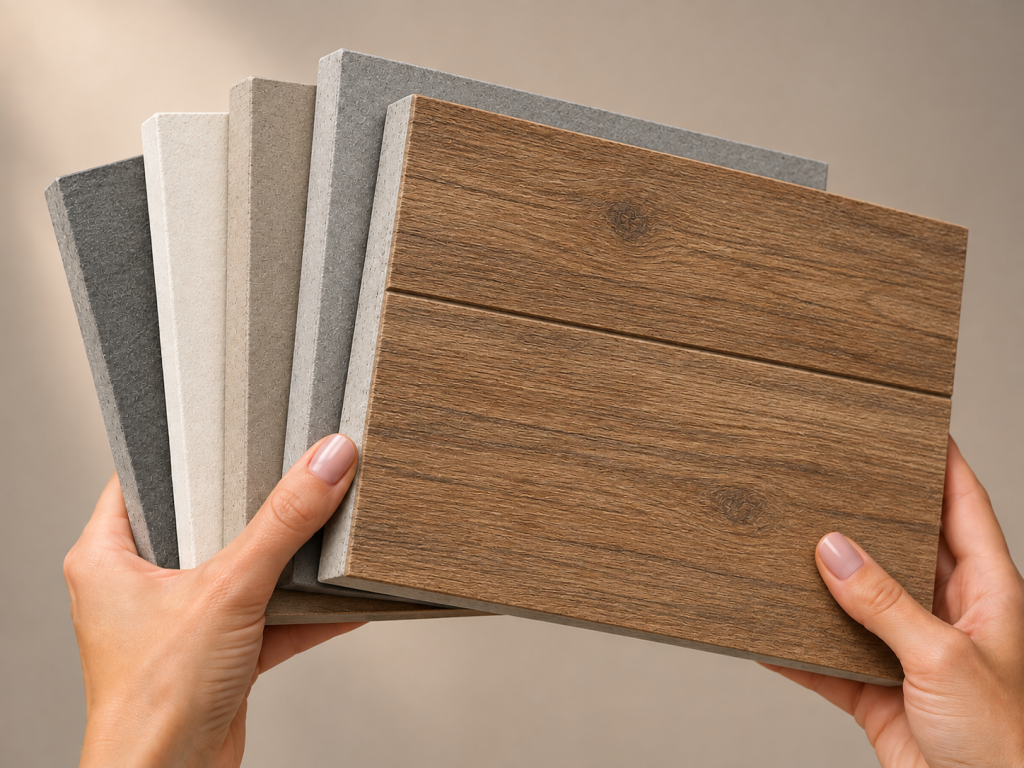

Unique in Nichiha's wood series, RiftSawn fiber cement panels showcase the texture of natural wood and have a dark edge to create the look of a reveal.
RiftSawn

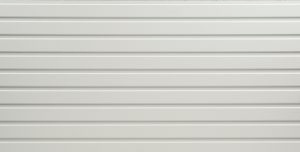

Ribbed

Specifications

~6-foot
Dimensions (in.)
17 7/8 H x 71 9/16 L
Dimensions (actual mm)
455 H x 1818 L
Thickness (in.)
3/4
Thickness (actual mm)
18
Weight (lbs. per panel)
41.6
Weight (lbs. per sq. ft.)
4.7
Exposed Coverage (sq. ft. per panel)
8.88
Packaging (pieces per pack)
2
Panel Orientation
Horizontal

The Engineered Performance of Nichiha

  1. The Ultimate Clip

    This creates a hidden fastening system that all but eliminates face fastening. Installation is quick and easy and never requires specialty contractors.
  2. Nichiha Architectural Wall Panels

    The panels are lightweight, easy to handle, and available in a virtually endless color palette and a diverse offering of textural finishes.
  3. Joint Tab Attachment

    Designed to support panel lateral stability, the tab helps vertical joints stay tightly closed and fastens to the Ultimate Clip with provided screws.
  4. Drained and Back-Ventilated Rainscreen

    This design allows water to escape and air to circulate, reducing the risk of mold and water damage inside the building.
  5. The Ultimate Starter Track

    This pulls double duty: it supports fast, level installation while its patented drainage channel directs water out and away from the base of the wall.

See Nichiha in Action

No matter if you are an experienced pro or homeowner, our tool can streamline your workflow and take the guesswork out of the process.
See Visualizer
  1. Upload a photo of your home or project.
  2. Instantly see any Nichiha product applied.
  3. Quickly change colors, formats, and orientations.

The same home exterior before and after applying Nichiha cladding.

Drag the divider, tap within the image, or focus the control and use the left and right arrow keys.

  • Aesthetic Design
  • Design Flexibility
  • Long-Term Performance
  • Fire Protection
  • Quick Installation

Project Spotlight

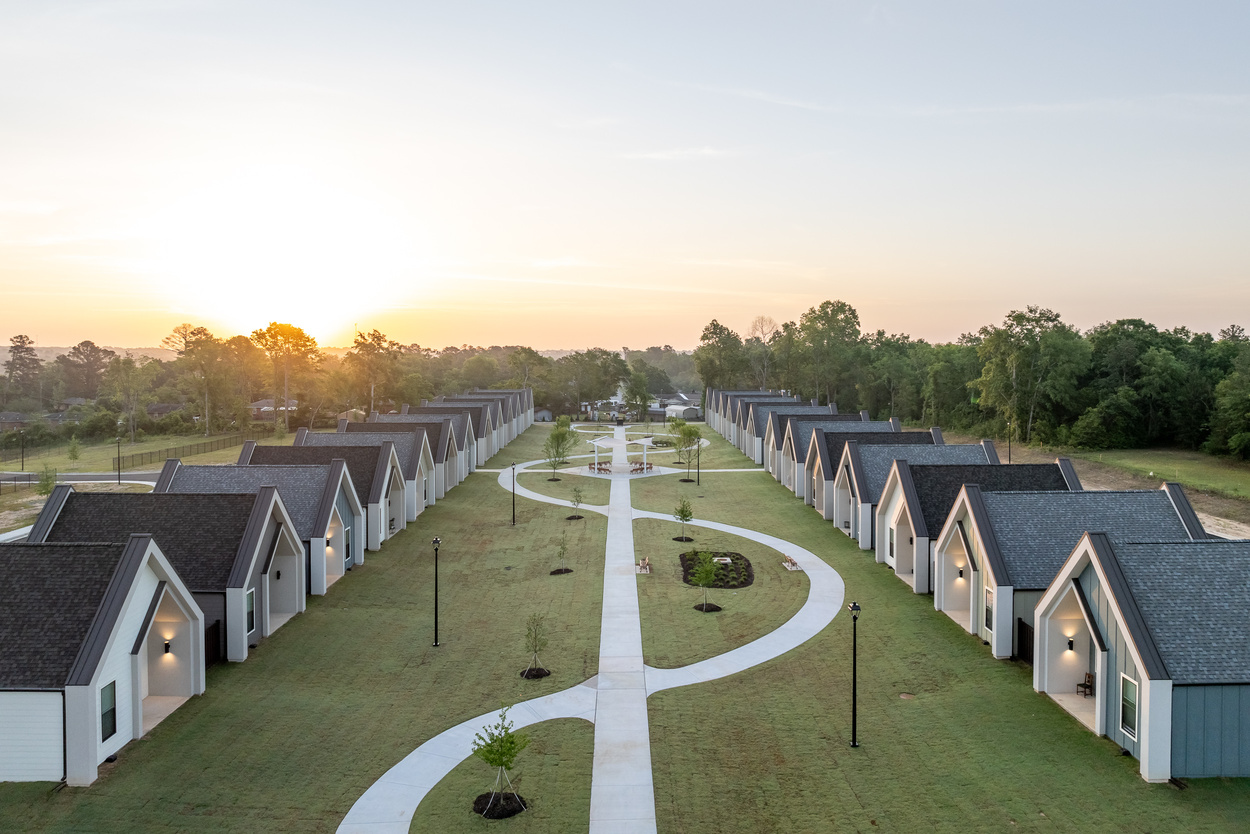

Serenity Courtyard: Building Dignity Through Design

River Edge Behavioral Health faced a difficult and growing challenge in Macon, Georgia: individuals aged 55 and older living with mental illness had almost no access to stable, long-term housing that felt safe, dignified, and truly like home.…
View Case Study

Frequently Asked Questions

Fireplace surround panels must be installed according to the specific clearance-to-combustibles requirements specified by the fireplace manufacturer and local building codes, utilizing Nichiha’s non-combustible clip assemblies.

Nichiha fiber cement gives you the rich, authentic look of natural wood or stone without the heavy maintenance. Unlike natural wood, Nichiha is non-combustible and fire-resistant, while also resisting rot, warping and damage from pests. Unlike vinyl, it won’t melt, crack, or warp under extreme heat.

Most folks like the 5/8″ thick modern VintageWood or RoughSawn for that timeless wood look without the maintenance of traditional wood. Both panels are 18″ (nom.) widths and install with our hidden fastener rainscreen system. VintageWood has the appearance of three 6″ planks per panel width and RoughSawn is made to look like four 4.5″ planks wide. Both can be installed either vertically or horizontally.

Alternatively, for a stunning craftsman, bungalow or transitional styled cedar sidewall look, our 1/2″ Sierra Premium Shake planks come in four prefinished colors. These are installed like normal blind-fastened sidings but with a thicker shadow line, faster installation and less waste than the thinner 1/4″ or 5/16″ traditional products. The corners can even be mitered to get that authentic shake appeal.

Our awesome rep team is in every market around North America and is looking forward to assisting with your project. Please send details using the Contact a Rep form and someone will be in touch within 24 hours. In the meantime, you can also access pricing information here and order samples here.
