Architectural Wall Panel – Blocked Penetration – Section View
≤ 1" Foam Plastic
AWP - Horizontal
Openings & Penetrations
Studwall

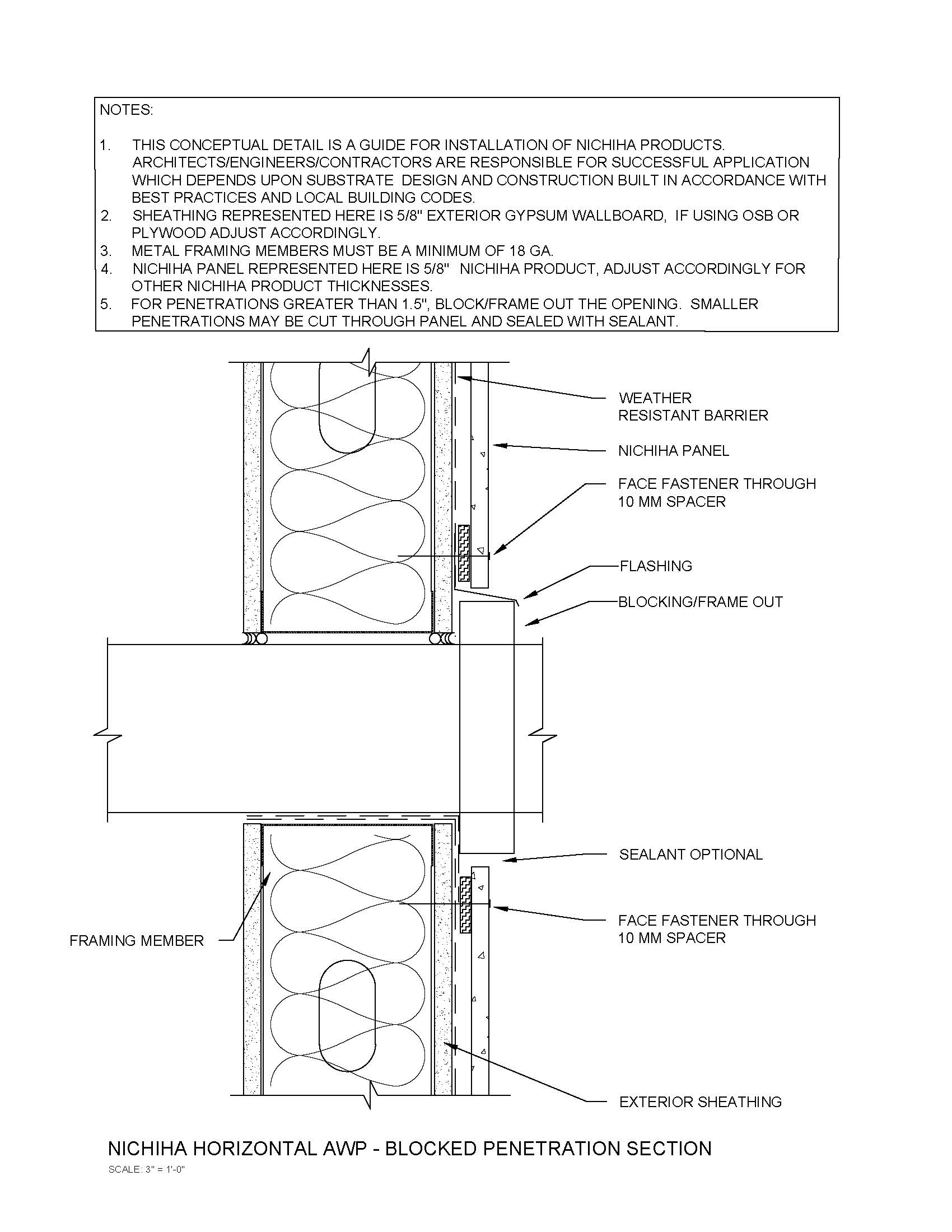

A section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a blocked penetration.
