Architectural Wall Panel – CMU – Blocked Penetrations – Plan View
≤ 1" Foam Plastic
AWP - Horizontal
Concrete/CMU
Openings & Penetrations

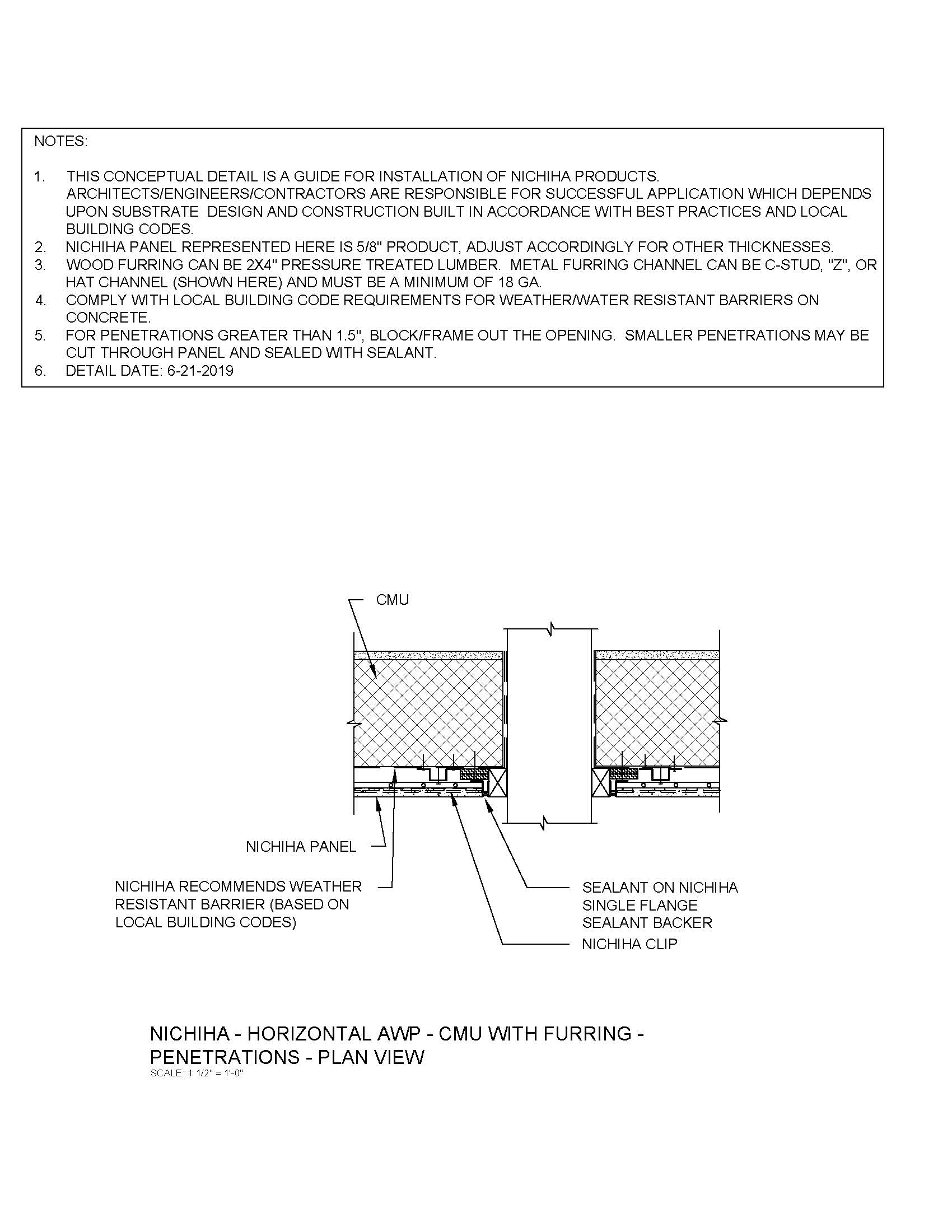

A plan view of horizontal Architectural Wall Panel (AWP) over CMU with furring at a blocked penetration.
