Architectural Wall Panel – Compression Joint – C.I.
> 1" Foam Plastic
AWP - Horizontal
Mineral Wool
Movement Joints
Studwall

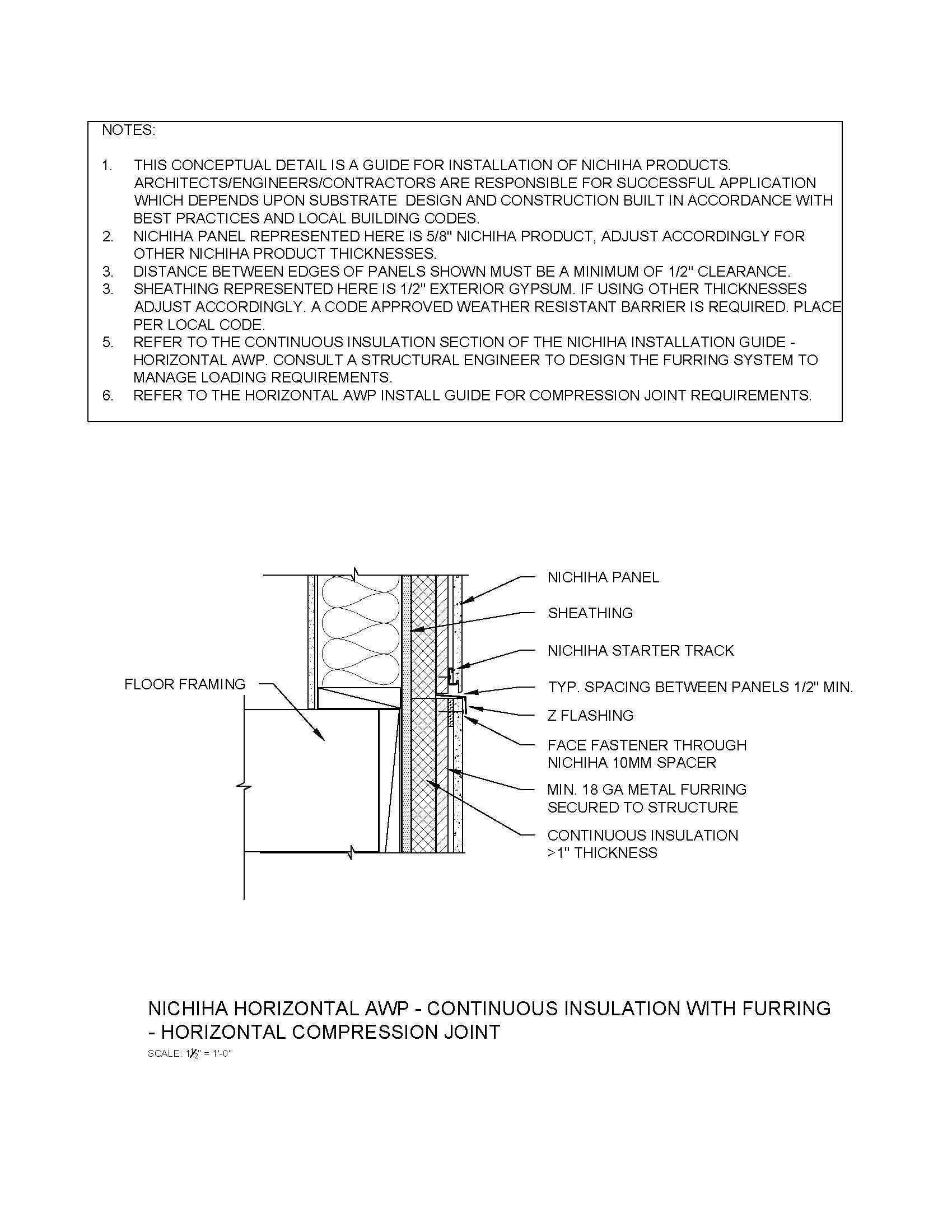

A section view of horizontal Architectural Wall Panel (AWP) over stud framing with greater than one inch of continuous insulation and furring at a horizontal/compression joint occurring at a floor line.
