Architectural Wall Panel – Horizontal Panel to Vertical Panel Transition – Vertical Joint
≤ 1" Foam Plastic
AWP - Horizontal
AWP - Vertical
Studwall
Transitions

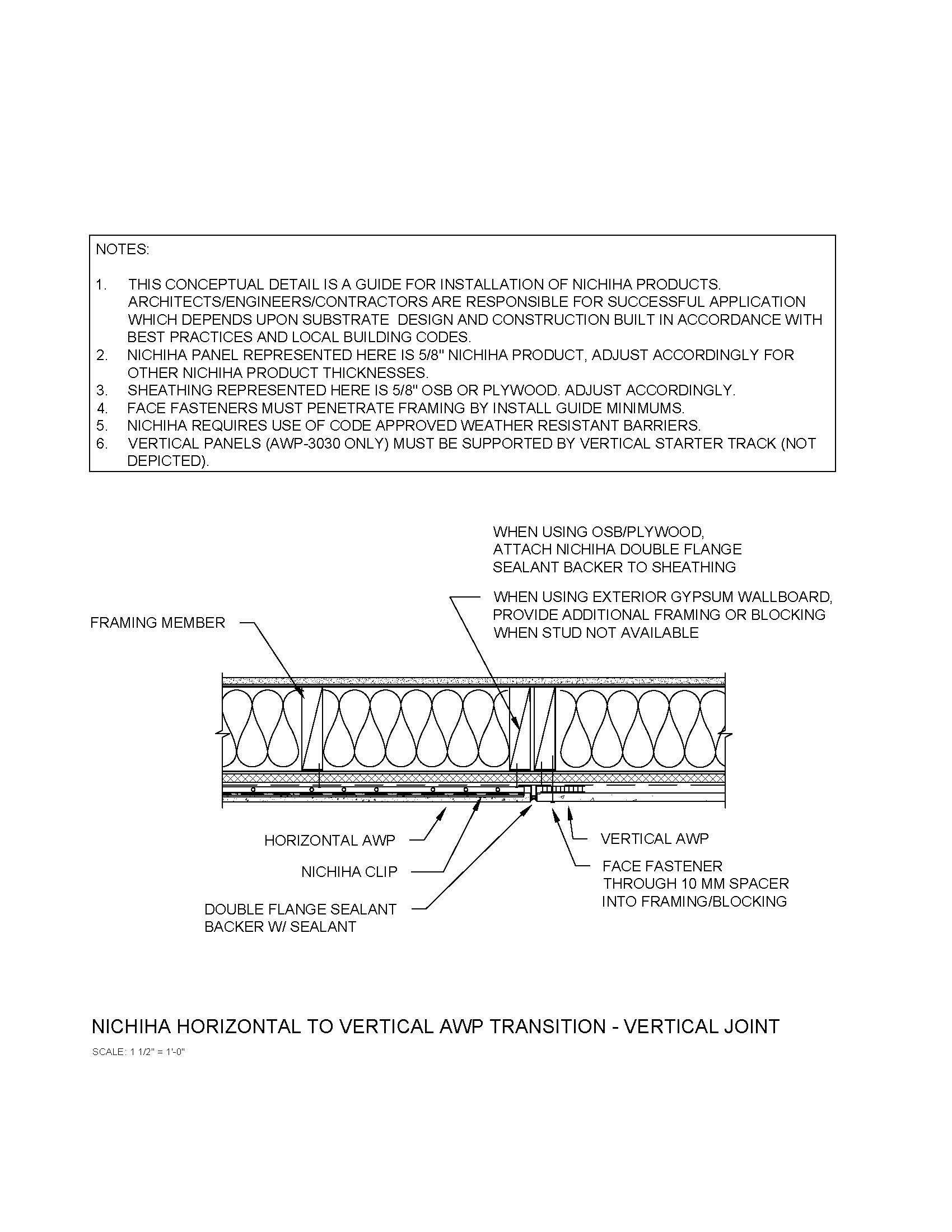

A section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a vertical transition joint to Vertical Architectural Wall Panel (AWP).
