Architectural Wall Panel – Non-90-Degree Corners

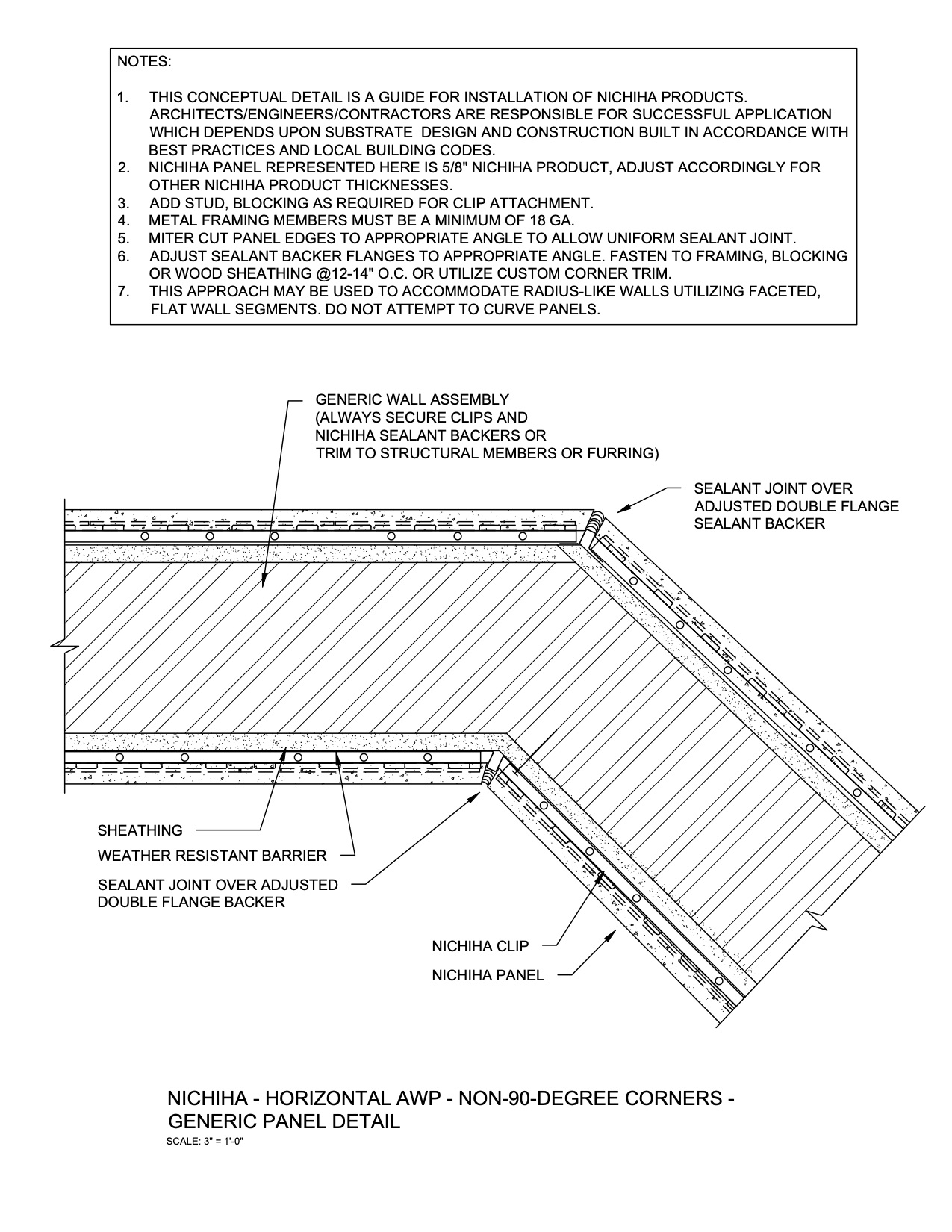

A plan view of horizontal Architectural Wall Panel (AWP) over generic framing with an inch or less continuous insulation at non-90-degree corners. This detail is appropriate for radius-like segmented, flat walls.
