Architectural Wall Panel – Overhang Transition – AWP Soffit – Starter Track
≤ 1" Foam Plastic
AWP - Horizontal
Studwall
Transitions

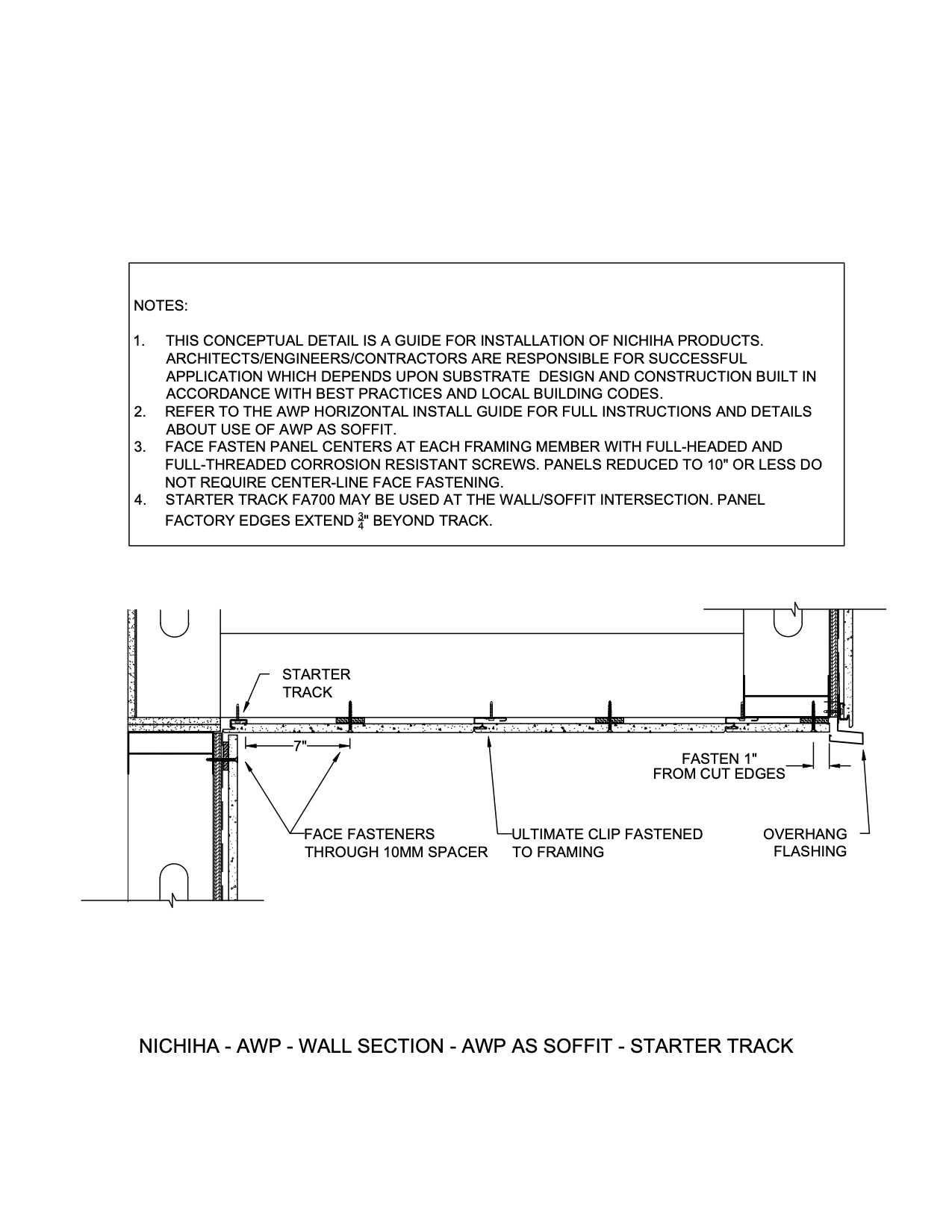

A section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at an overhang transition with AWP as Soffit. Starter Track (FA700) is used with soffit panels.
