Architectural Wall Panel – Window Jamb – C.I. – Bump Out Return
> 1" Foam Plastic
AWP - Horizontal
Mineral Wool
Openings & Penetrations
Studwall

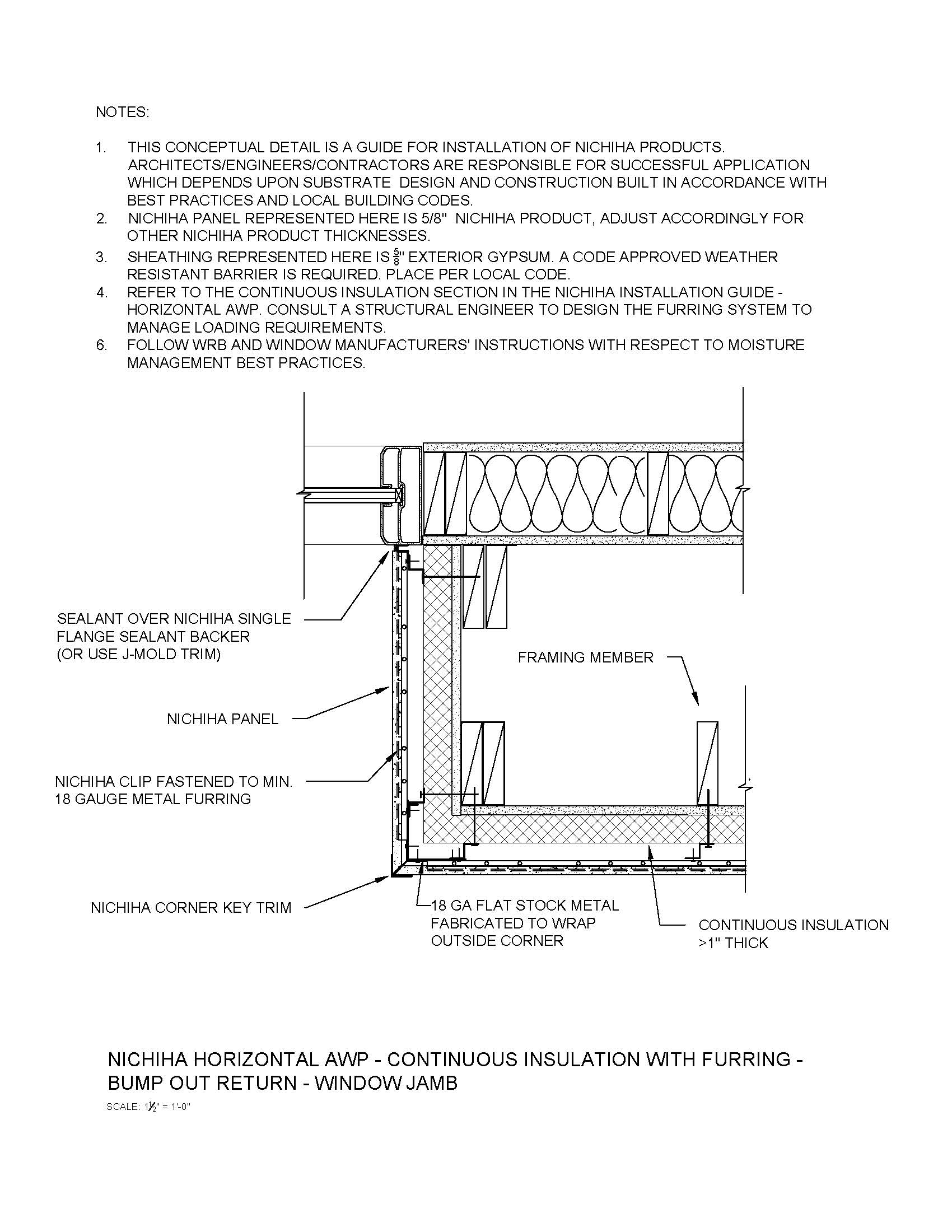

A plan section view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring on a bump out return terminating to a deeply recessed window jamb.
