Architectural Wall Panel – Window Jamb – Trim Board
≤ 1" Foam Plastic
AWP - Horizontal
Openings & Penetrations
Studwall

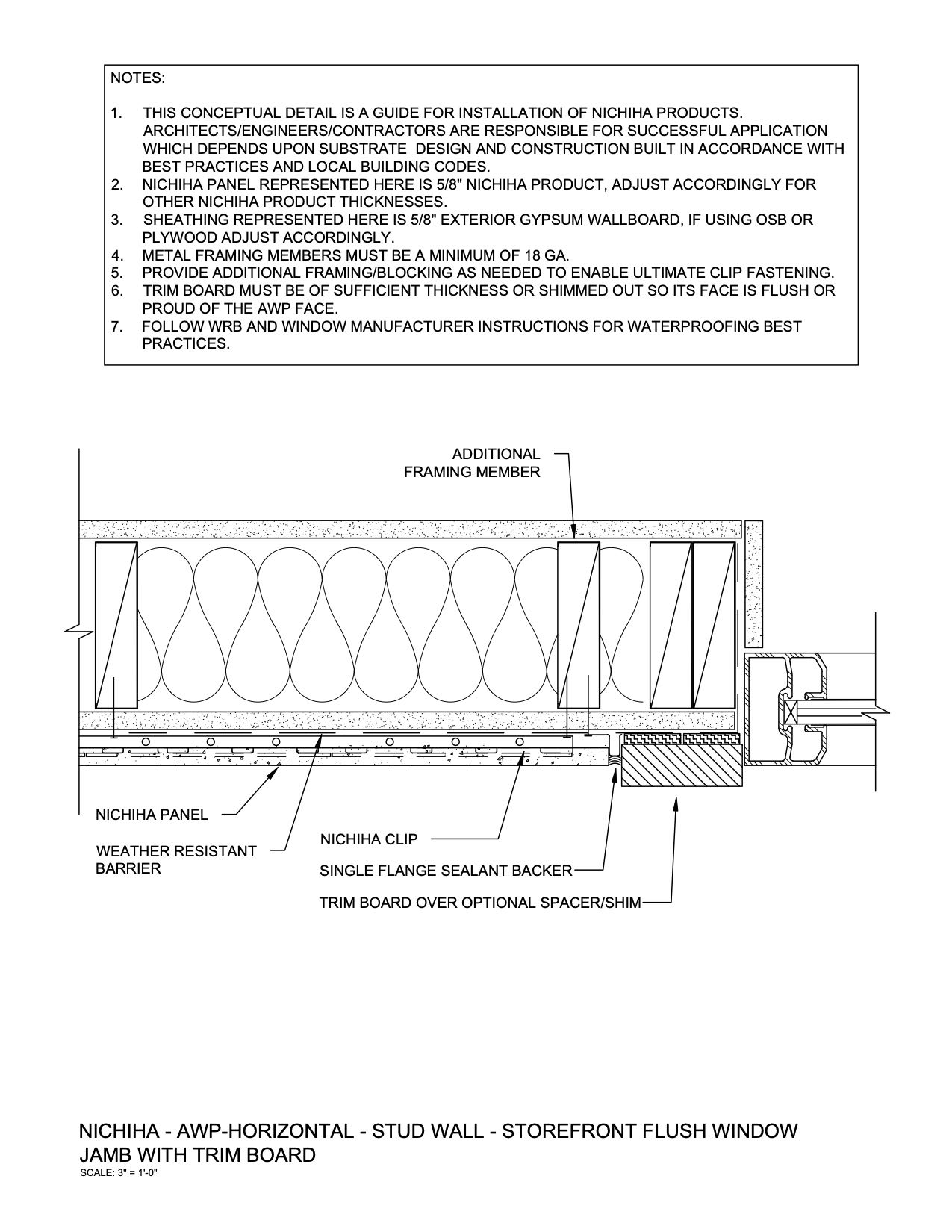

A plan section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a flush window jamb with Single Flange Sealant Backer at Trim Board.
